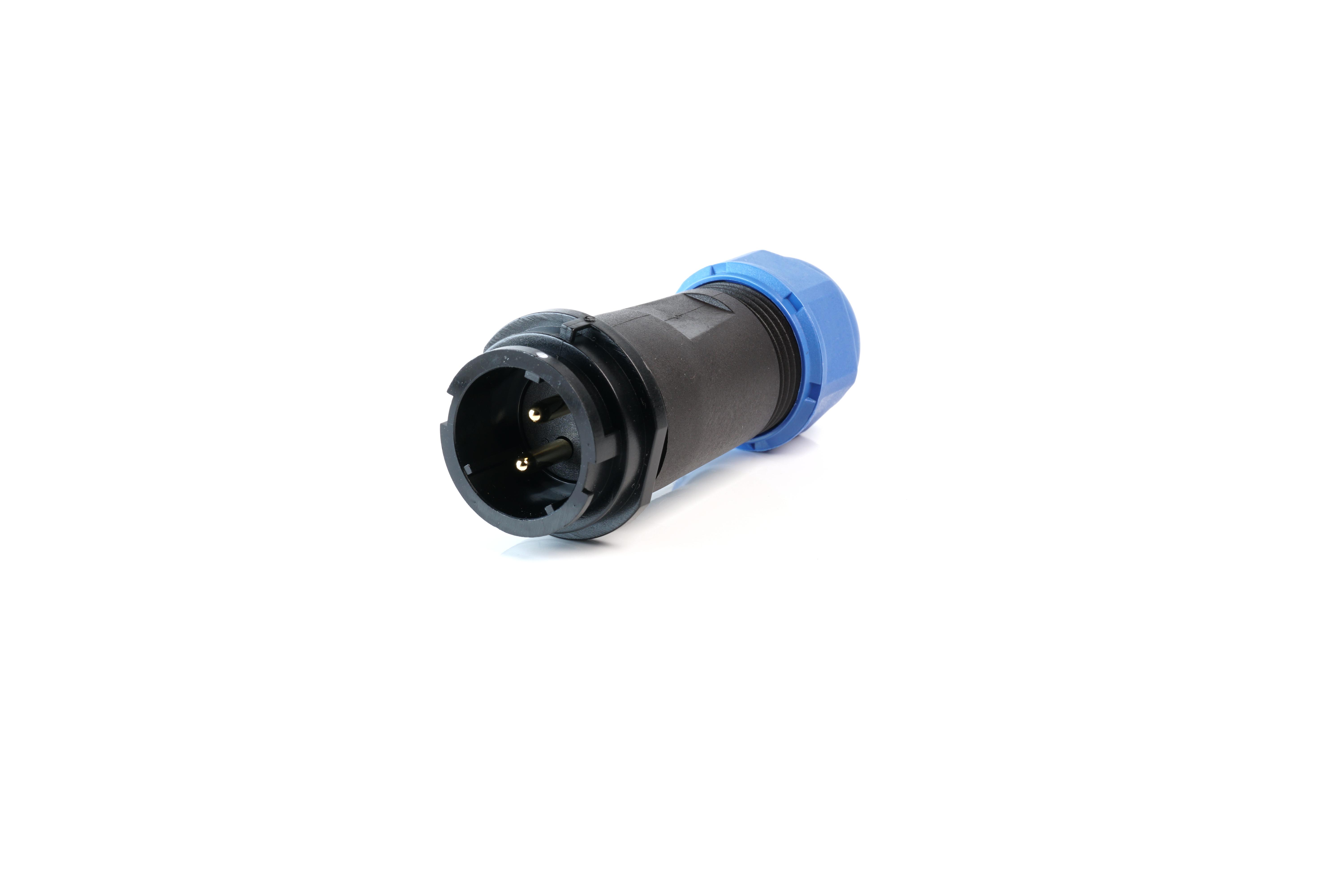

MULTICOMP PRO MP002680 IP67 industrial connector
The MP-T21 IP67 series features durable connectors with bayonet couplings for quick, secure connection and disconnection. Suitable for indoor and outdoor environments, these weather-sealed connectors support cable, panel, and inline configurations, fitting a 21mm cut-out. They offer solder or screw termination options across various pole counts, such as 2, 3, 4, 5, 7, 9, and 12 poles. Designed with robust materials and an IP67 cap for additional protection, they are ideal for automation, industrial, medical, security, and test measurement applications, ensuring reliable performance in harsh conditions.
MULTICOMP PRO MP002680 IP67 industrial connector Specifications:
- Material: Nylon66 shell, Brass contacts with gold plating, PPS insert
- Protection Class: IP67 weather-sealed
- Coupling: Bayonet
- Mounting Options: Panel, Cable, Inline Cable Mount
- Cable Diameter Range: up to 12mm
- Contact Configuration: 2, 3, 4, 5, 7, 9, 12 poles
- Termination: Solder or Screw
- Electrical Ratings: Rated Current 5-30A, Rated Voltage 400-500V
- Contact Resistance: 1-5mΩ
- Temperature Range: -40°C to +80°C
- Number of Insert Contacts: varies with model
- Mating Cycle: 500
Buy the Multicomp Series IP67 Connector: MP002680
Experience the robustness and reliability of the IP67 industrial connector from Multicomp. Perfect for harsh environments, this connector offers quick bayonet coupling, solder or screw termination, and supports multiple pole configurations. Its weather-sealed design ensures protection against dust and water ingress, making it ideal for automation, medical devices, security systems, and industrial automation. Order online today to enjoy seamless installation, durable materials, and high-performance connection solutions that stand up to demanding applications and outdoor conditions.
Buy Multicomp IP67 Connector MP002680 now and ensure reliable, weather-resistant connections for industrial, automation, and medical applications.
