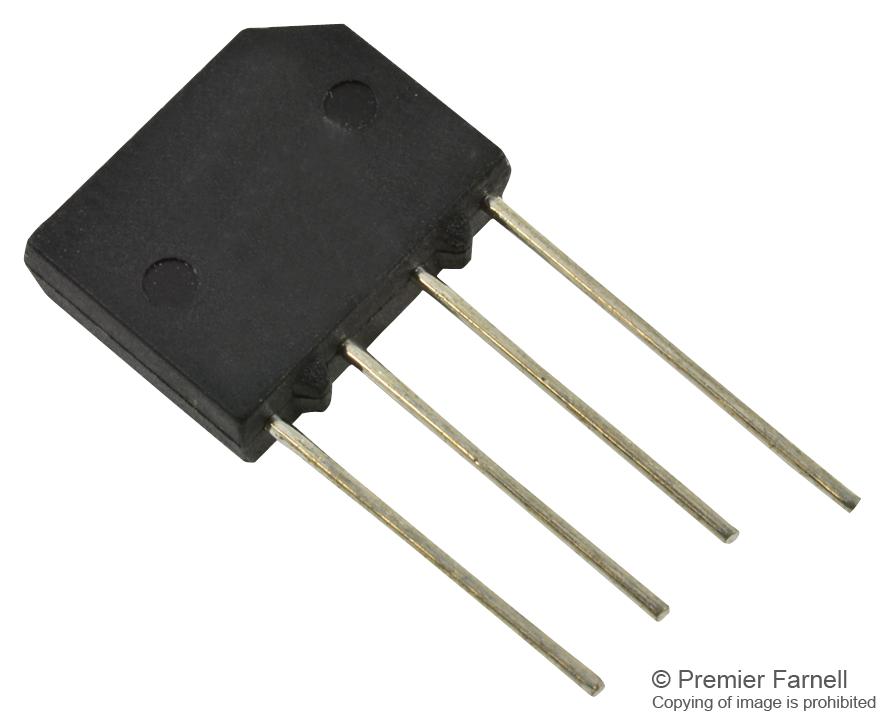

MULTICOMP PRO KBP210G Bridge Rectifier
The KBP210G glass-passivated bridge rectifier is suitable for printed circuit board applications, capable of handling a maximum RMS input voltage of 700V and a blocking voltage of 1000V. It features a peak forward surge current of 60A and exhibits a maximum reverse current of 10 microamperes at 800V per element. The device is mountable in any orientation, making it ideal for mains rectification and electronic power conversion. This component complies with RoHS standards, has UL flammability class 94-0, and features a robust design suitable for various industrial and electronics applications, ensuring high reliability and performance at steady operating conditions.
MULTICOMP PRO KBP210G Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 50V to 1000V
- Maximum RMS Bridge Input Voltage: 35V to 700V
- Maximum DC Blocking Voltage: 50V to 1000V
- Maximum Forward Surge Current: 60A for 8.3 ms
- Maximum Average Forward Rectified Current at 25°C: 2A
- Maximum Reverse Current at Rated DC Blocking Voltage: 10 microamperes at 800V
- Peak Forward Voltage Drop: 14V at 2A
- Operating Temperature Range: -55°C to +150°C
- Mounting Position: Any
- RoHS compliant; UL flammability class 94-0
- Physical dimensions: approximately 45 x 16.25 mm, with various lead configurations
- Designed for printed circuit board mounting, high surge capability, and reliable power rectification
Buy the Multicomp Series Bridge Rectifier: 700V 2A Model KBP210G
Purchase the Multicomp Series KBP210G bridge rectifier online today to benefit from high surge current capacity, low reverse leakage, and reliable performance. Perfectly suited for power supply units, rectification in electronic devices, and industrial power conversions, this component guarantees durability and efficiency under demanding conditions. Featuring RoHS compliance, versatile mounting options, and a maximum RMS input voltage of 700V, this rectifier ensures seamless integration into your designs. Order now to enhance your projects with proven quality and fast delivery.
Buy Multicomp Series KBP210G bridge rectifier now and experience unmatched reliability and performance for power electronics and PCB applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO KBP210G?
You can click on the BUY or RFQ button to purchase KBP210G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part KBP210G?
You can download the KBP210G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of KBP210G?
MULTICOMP PRO
