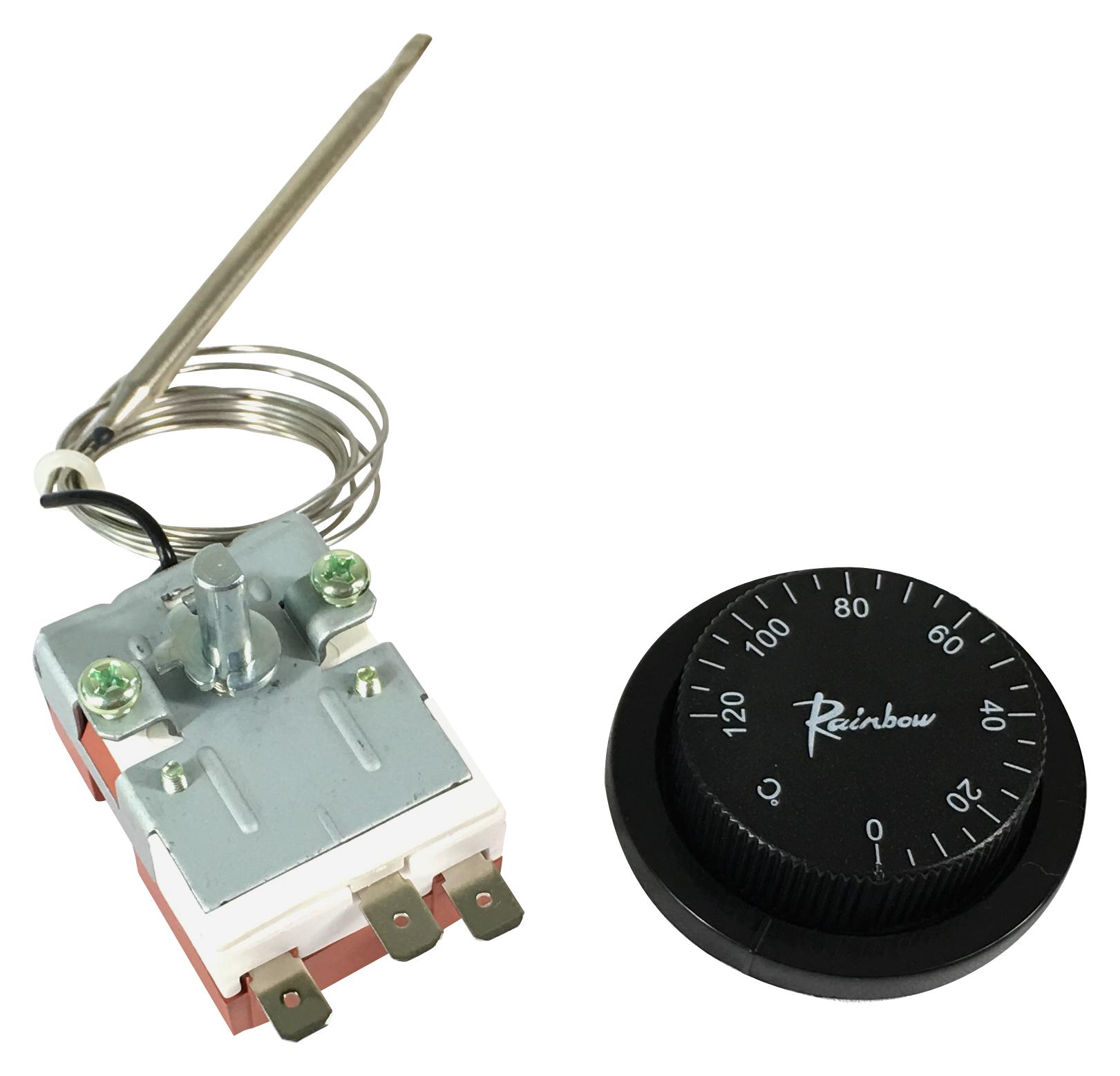

MULTICOMP PRO TS030SR Capillary Thermostat
Capillary thermostats suitable for refrigeration, air conditioning, and cooking equipment such as fryers and microwaves. The TS Series features models with adjustable temperature ranges from -30°C to +320°C, with capillary lengths up to 2000mm. Designed for reliable control, these thermostats include options with different knob and terminal types, supporting high electric ratings of 20A at 250V. Ideal for precise temperature regulation in commercial and household appliances, featuring SPST or SPDT switch actions, and robust mounting options for versatile installation.
MULTICOMP PRO TS030SR Capillary Thermostat Specifications:
- Capillary Length: 1,000mm (ranges from 250mm to 2,000mm)
- Knob (Dial): RorB
- Stuffing Bolt: PT 1/4, M12, M14
- Mounting Distance: 28mm
- Electric Rating: 20A/250V
- Switch Action: SPST / SPDT
- Shaft Range: 270°
- Ambient Temperature: 120°C
- Terminal Type: Straight, 90°
- Temperature Range: -30°C to +320°C
- Bulb Type: Varied options
- Dimensions: Various, including 5.8mm x 127mm and 5mm x 58mm
- Application: Refrigeration, air conditioning, cooking equipment
- RoHS Compliant
Buy the Farnell Series TS Capillary Thermostats: TS030SR
Purchase the Farnell TS Series Capillary Thermostat online for reliable temperature regulation in refrigeration, air conditioning, and cooking appliances. These thermostats support adjustable temperature ranges from -30°C to +320°C, with capillary lengths up to 2000mm, ensuring flexible installation. Featuring high electric ratings of 20A at 250V, they offer both SPST and SPDT switch options, suitable for diverse applications. Easy to mount and operate, these thermostats are essential for maintaining optimal environmental conditions in commercial and domestic equipment, providing dependable performance and compliance with RoHS standards.
Get Farnell TS030SR today—built for precision and long-lasting durability in temperature control applications.
