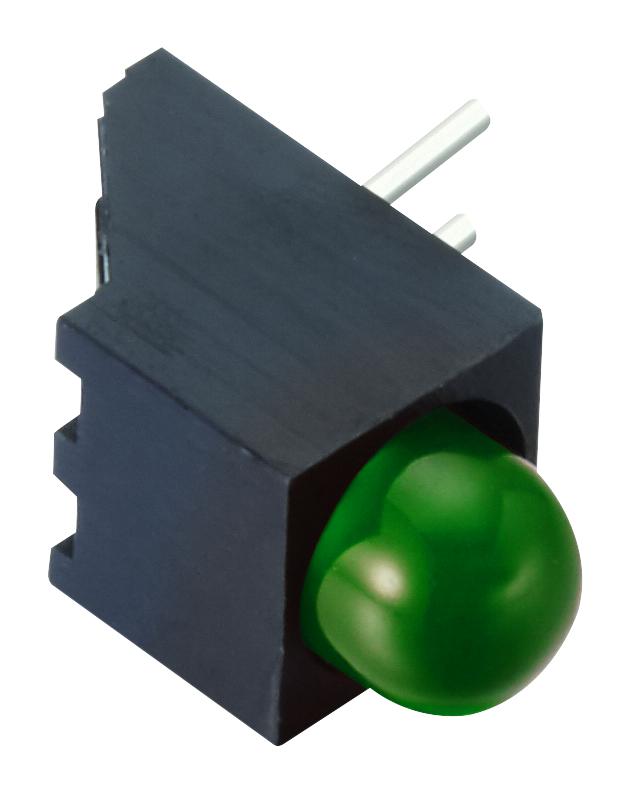

MULTICOMP-PRO L383HGD Green Diffused LED
The 4.7mm Round Type with Housing multicomp L383HGD features a green diffused LED with a peak wavelength of 568 nm, suitable for indicator and display applications. It has a viewing angle of 145° and a luminous intensity ranging from 20 to 50 mcd at 20mA. Its construction includes GaP dice material, with a maximum forward voltage of 2.6V and a power dissipation of 85 mW. Operating temperature ranges from -40°C to +85°C, making it ideal for various industrial and electronic devices requiring reliable visual signaling.
MULTICOMP-PRO L383HGD Green Diffused LED Specifications:
- Diameter: 4.7mm
- Housing Material: Plastic
- Dice Material: GaP
- Peak Wavelength: 568 nm
- Emitted Colour: Green
- Viewing Angle: 145°
- Lens Colour: Green Diffused
- Luminous Intensity: 20-50 mcd at 20mA
- Forward Voltage: 1.8V to 2.6V (typical 2.2V)
- Power Dissipation: 85 mW
- Peak Forward Current: 100 mA at 1/10 duty cycle
- Recommended Operating Current: 10 mA
- Reverse Voltage: 5 V
- Reverse Current: 10µA at VR=5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
Buy the Buy multicomp Green Diffused LED Part Number L383HGD Online
Purchase the multicomp series L383HGD green diffused LED online today to ensure your electronic and industrial projects benefit from durable, high-brightness lighting solutions. These 4.7mm LEDs feature a peak wavelength of 568 nm with a wide viewing angle of 145°, providing excellent visibility in indicator applications. Operating efficiently within a temperature range of -40°C to +85°C, they offer a forward voltage of 1.8V to 2.6V and power dissipation of 85 mW, making them suitable for a variety of electronic signaling needs and reliable indicator solutions.
Order your multicomp series L383HGD green diffused LED today and enhance your indicator and display projects with reliable, high-quality illumination.
