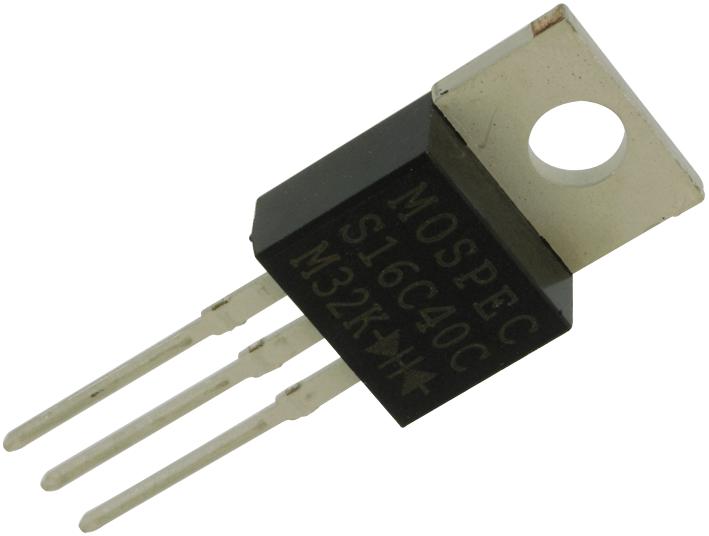

MULTICOMP PRO MBR1640CT Rectifier
The Schottky barrier rectifier features a high-efficiency chip with a guard ring for over-voltage protection, low reverse leakage current, and high surge current capability. Encased in a UL 94V-0 plastic package, it suits low-voltage, high-frequency inverter power supplies, freewheeling, and polarity protection applications. Mechanical details include a TO-220AB molded plastic case, pure tin-plated terminals, and a weight of 21.9 grams. The device operates within a temperature range of -55°C to +150°C and has ratings for reverse voltage from 40 to 100 volts and forward current of 16A, ensuring reliable performance in various electrical environments.
MULTICOMP PRO MBR1640CT Rectifier Specifications:
- Case: TO-220AB molded plastic
- Terminals: Pure tin plated, lead solderable per MIL-STD-750, method 2026
- Polarity: As marked on the body
- Weight: 21.9 grams
- Reverse Voltage: 40 to 100 Volts
- Forward Current: 16 Amperes
- Maximum Ratings (25°C): VRRM 40-100V, Vrms 28-70V, IF 16A
- Peak Surge Current: 150A for 8.3ms single half-sine wave
- Maximum Forward Voltage: 0.7V at 8A
- Maximum Reverse Leakage: 0.15mA at 25°C
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance (Junction to Case): 2°C/W
Buy the Multicomp Series Rectifier: MBR1640CT
Purchase the Multicomp Series MBR1640CT Schottky barrier rectifier online to benefit from fast delivery and dependable performance. Designed for low-voltage, high-frequency inverters and power supplies, it features low leakage currents and high surge capacity. Its robust TO-220AB package with UL 94V-0 classification offers safety and durability in various applications. With ratings up to 100V reverse voltage and 16A forward current, it maintains excellent thermal and electrical characteristics, ensuring efficient operation. Buy now to integrate this high-quality power rectifier into your electronics system.
Order your Multicomp Series MBR1640CT rectifier today and ensure reliable, high-efficiency power conversion for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MBR1640CT?
You can click on the BUY or RFQ button to purchase MBR1640CT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MBR1640CT?
You can download the MBR1640CT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MBR1640CT?
MULTICOMP PRO
