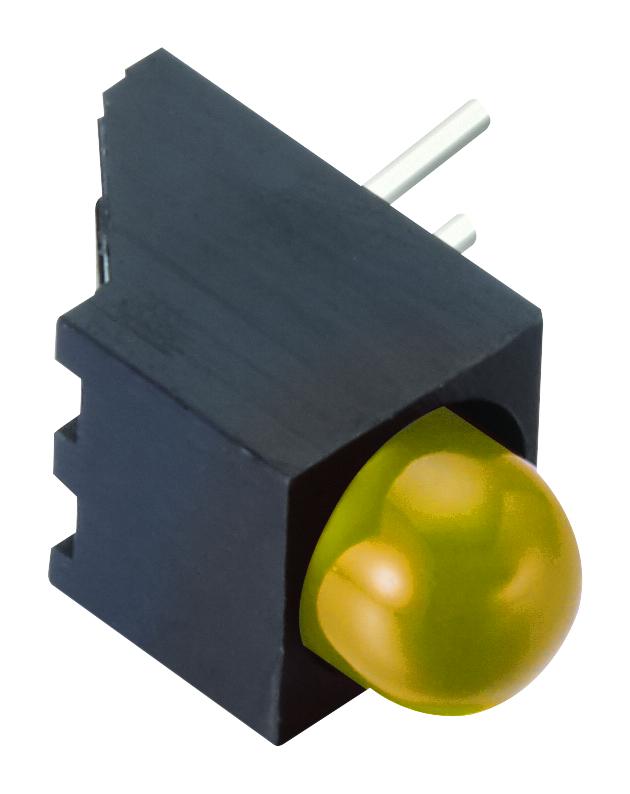

MULTICOMP PRO L383HYD Round Diffused LED
The 4.7mm Round With Housing multicomp L383HYD is a yellow diffused LED designed for various indicator and illumination applications. It features GaAsP on GaP dice material, emitting at a peak wavelength of 587 nm with a viewing angle of 145°. The LED operates efficiently with a forward voltage of approximately 1.8V to 2.6V and a recommended operating current of 20mA. Its compact round form with housing provides ease of integration into electronic devices, ensuring reliable performance within a temperature range of -40°C to +85°C and withstanding soldering temperatures up to 260°C for 5 seconds.
MULTICOMP PRO L383HYD Round Diffused LED Specifications:
- Dice Material: GaAsP on GaP
- Peak Wavelength: 587 nm
- Emitted Colour: Yellow
- Viewing Angle: 145°
- Lens Colour: Yellow Diffused
- IV (mcd): 25 at typical operating conditions
- Forward Voltage: 1.8V to 2.6V at 20mA
- Power Dissipation: 85 mW
- Peak Forward Current: 100 mA (duty 1/10 @ 1kHz)
- Recommended Operating Current: 20 mA
- Reverse Voltage: 5 V
- Reverse Current: 10 uA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
Buy the Multicomp Series 4.7mm LED: L383HYD
Purchase the multicomp Series 4.7mm Round Diffused Yellow LED L383HYD online today and ensure reliable, efficient illumination for your electronic projects. Featuring GaAsP on GaP dice material, this LED emits at a peak wavelength of 587 nm with a broad viewing angle of 145°, perfect for indicators and visual signals. Its compact round housing design allows seamless integration into various applications. Operating efficiently at 20mA with a forward voltage of around 1.8V to 2.6V, it withstands operating temperatures from -40°C to +85°C, withstanding soldering temperatures up to 260°C for reliable performance.
Order your multicomp Series 4.7mm LED L383HYD today and give your projects the dependable yellow illumination they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO L383HYD?
You can click on the BUY or RFQ button to purchase L383HYD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part L383HYD?
You can download the L383HYD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of L383HYD?
MULTICOMP PRO
