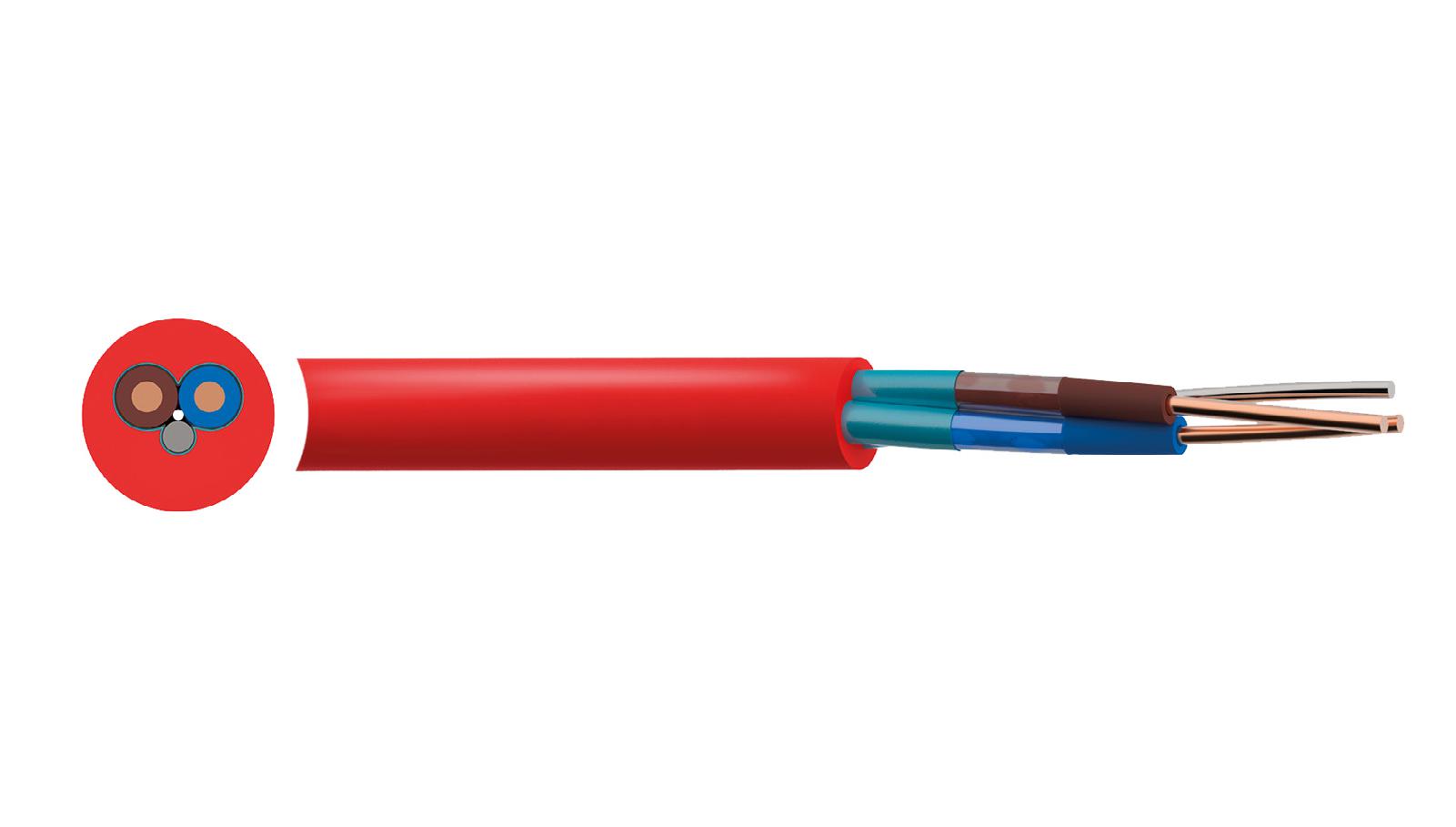

MULTICOMP PRO MP002414 Fire Resistant Multicore Cable
This fire-resistant multicore cable with solid conductors is designed for safe operation in fire detection, alarm, and emergency lighting systems. Certified by BASEC and compliant with BS and IEC standards, it features high-performance silicone rubber insulation for durability and fire resistance. The cable is available with 2.5mm² cross-sectional area, suitable for various circuit configurations, including 2, 3, and 4 cores plus earth. Its LSZH outer sheath ensures minimal smoke and halogen emissions, making it ideal for critical safety applications in buildings requiring reliable fire protection and circuit integrity.
MULTICOMP PRO MP002414 Fire Resistant Multicore Cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid Conductor, 2.5mm²
- Insulation: High performance fire resistant silicone rubber
- Outer Sheath: LSZH, Red & White
- Number of Cores: 2, 3, or 4 cores plus earth
- Core Identification: Blue, Brown, Black, Grey, Bare Earth
- Screen: Aluminium/Polyester Tape
- Standards & Approvals: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200, BS 6387, BS 5266-1, BS 8519, BS EN 60228
- Resistance: Conductor at 20°C 12.1 Ω/km for 1.5mm², 74.1 Ω/km for 2.5mm²
- Current Capacity: 24A (2-Core), 30A (3/4-Core) at 1.5mm²
- Voltage Drop: 30 mV/A/m (1.5mm², 3 and 4 core), 18 mV/A/m (25mm²)
- De-Rating Factors: 0.8 to 1.04 depending on ambient temperature range 25°C to 65°C
Buy the Buy Multicore Fire Resistant Cable Part Number MP002414 Online
Enhance safety and reliability with our fire-resistant multicore cable, ideal for alarm, emergency lighting, and detection circuits. Certified, compliant with industry standards, and featuring fire-resistant silicone insulation, this cable provides peace of mind in critical safety applications. Its LSZH sheath minimizes smoke and halogen emissions, making it suitable for installation in buildings with strict fire safety requirements. Available in 2.5mm² cross-section with multiple core configurations, it's the dependable choice for professional electrical installations needing durable and fire-safe wiring solutions.
Order your Multicore Fire Resistant Cable MP002414 today and ensure reliable, fire-safe connections in your alarm and emergency lighting systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002414?
You can click on the BUY or RFQ button to purchase MP002414 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002414?
You can download the MP002414 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002414?
MULTICOMP PRO
