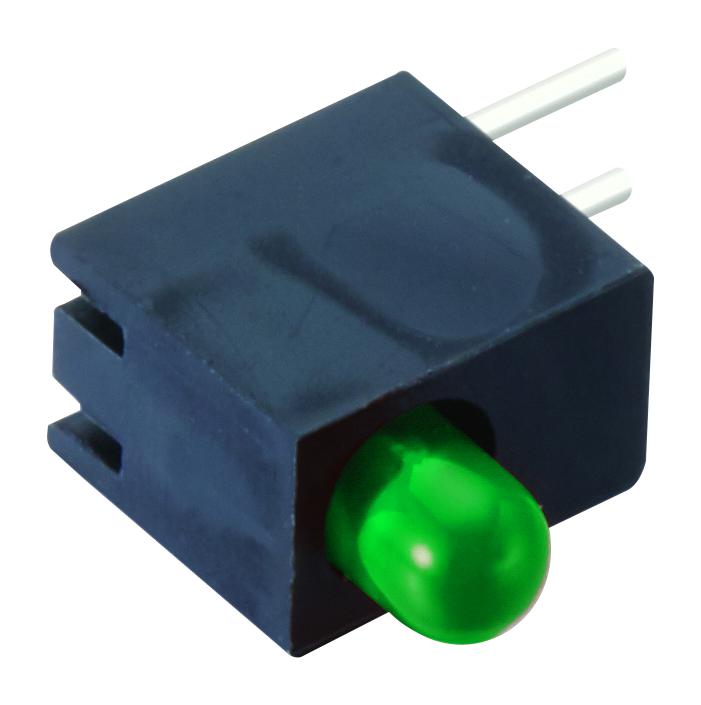

MULTICOMP-PRO L514HGD Green LED
This 3mm round, flangeless LED features a green GaP emitter with a peak wavelength of 568 nm, offering a luminous intensity of 20-40 mcd at 20 mA. Designed for precision in various electronic applications, it has a 50° viewing angle, forward voltage between 1.8V and 2.6V, and power dissipation up to 85 mW. Operating temperatures range from -40°C to +85°C, with high reliability and optimal performance in indicator lighting, displays, and signaling systems. Its compact size and diffused green lens make it ideal for versatile, space-constrained electronic designs.
MULTICOMP-PRO L514HGD Green LED Specifications:
- Dimensions: 3.0 mm round size with tolerance of +0.25 mm
- Lens Colour: Green diffused
- Peak Wavelength: 568 nm
- Viewing Angle: 50°
- Luminous Intensity: 20-40 mcd at 20 mA
- Forward Voltage: 1.8V to 2.6V (typical 2.2V)
- Power Dissipation: up to 85 mW
- Peak Forward Current: 100 mA
- Recommended Operating Current: 20 mA
- Reverse Voltage: 5 V
- Reverse Current: 10 μA at VR=5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
Buy the Buy multicomp Green LED Part Number L514HGD Online
Order the multicomp green LED L514HGD online today to enhance your electronic projects with a reliable, compact 3mm component. Featuring a peak wavelength of 568 nm and a luminous intensity ranging from 20 to 40 mcd, this LED offers a 50° viewing angle and operates efficiently between -40°C and +85°C. Its diffused green lens ensures clear visibility in various signaling, display, and indicator applications. Purchase now for fast delivery and quality assurance, perfect for space-constrained and precision electronic designs.
Get multicomp L514HGD today—built for precision and long-lasting durability, ideal for indicator and display applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO L514HGD?
You can click on the BUY or RFQ button to purchase L514HGD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part L514HGD?
You can download the L514HGD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of L514HGD?
MULTICOMP-PRO
