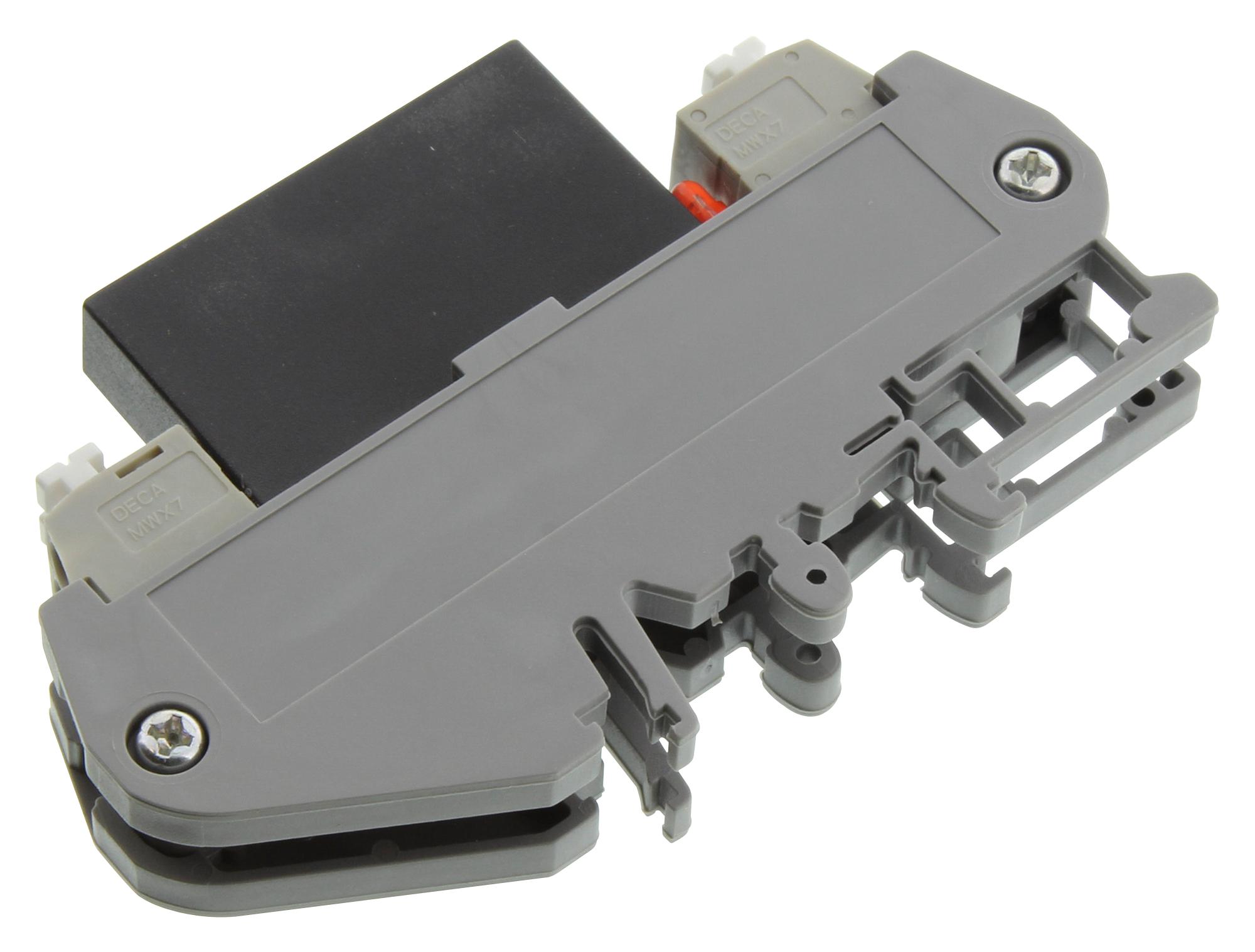

MULTICOMP PRO MC002266 Solid State Relay Module
This single-channel DIN rail-mounted solid state relay module is designed for industrial automation, control systems, and entertainment equipment. It features a load current range of 0.1A to 5A, with control voltages between 4-15V DC, 15-32V DC, or 4-32V DC. The relay offers a dielectric strength of 4000VAC, ensuring high isolation between input and output. Compact and reliable, it operates within an ambient temperature range of -30°C to +80°C, making it suitable for various automatic machinery, elevator, and control applications with easy DIN rail mounting.
MULTICOMP PRO MC002266 Solid State Relay Module Specifications:
- Load Current: 0.1~5A
- Control Voltage Range: 4-15V DC, 15-32V DC, 4-32V DC
- Input Voltage: 4~15V DC, 15~32V DC, 4~32V DC
- Must Turn-On Voltage: 4V DC, 5V DC
- Must Turn-Off Voltage: 1V DC
- Maximum Input Current: 25mA
- Load Voltage Range: 240V AC, 24-280V AC
- Transient Over Voltage: 600Vpk
- Maximum Surge Current: 160A
- Maximum Turn-On/Off Time: 1/2 cycle + 1ms
- Isolation Voltage: 4000VAC rms
- Dielectric Strength: 4000VAC rms
- Insulation Resistance: 1000MQ
- Ambient Operating Temperature Range: -30°C to +80°C
- Weight: 55g
Buy the Multicomp Pro MC002266 – Reliable Solid State Relay for Industrial Applications
Enhance your automation projects with the reliable and easy-to-install solid state relay module. Designed for DIN rail mounting, it handles load currents up to 5A, supports control voltages from 4V to 32V DC, and ensures high dielectric strength of 4000VAC. Its compact size and robust construction make it suitable for industrial control systems, elevators, and entertainment equipment. Order online today and experience seamless switching and high isolation performance, making your automation setups more efficient and reliable.
Order your multicomp series MC002266 DIN rail-mounted solid state relay today and enhance your automation projects with dependable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002266?
You can click on the BUY or RFQ button to purchase MC002266 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002266?
You can download the MC002266 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002266?
MULTICOMP PRO
