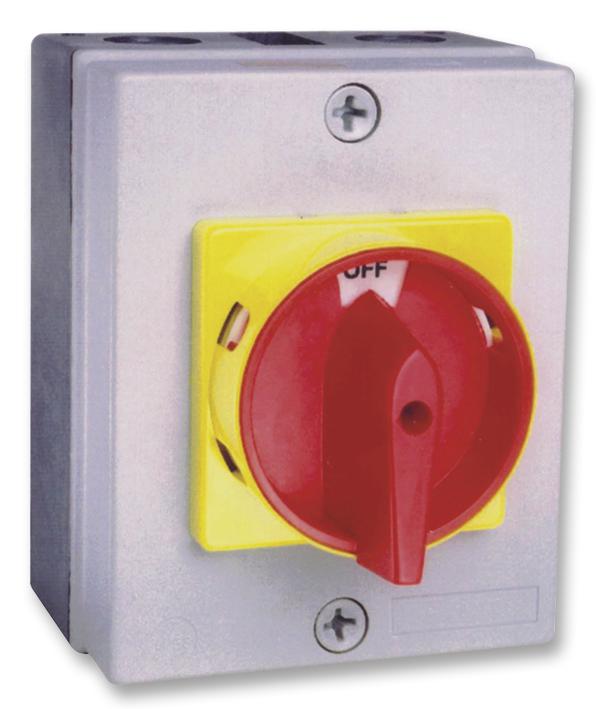

MULTICOMP PRO LB324P Industrial Isolator Switch
The enclosed switch disconnector is a boxed isolator designed for reliable switching and isolation in electrical systems. It features a robust 4-pole configuration suitable for current ratings up to 32A and voltage ratings up to 690V, complying with IEC, EN, UL, and other international standards. Its compact design includes easy wiring and mounting options, with optional knockout holes for M20 and 16mm conduits. The switch's rated impulse withstand voltage is 6kV, with UL power ratings up to 20hp, making it ideal for industrial and automation applications requiring durable and safe isolation solutions.
MULTICOMP PRO LB324P Industrial Isolator Switch Specifications:
- Rated operational voltage Ue: 690V (IEC & EN), 600V (UL)
- Main isolating voltage: up to 750V
- Rated impulse withstand voltage Uimp: 6kV
- Rated uninterrupted current: 16A, 20A, 25A
- Rated operational current: 16A to 32A
- Rated operational power: 11kW to 22kW at varied voltages
- UL Power Ratings: 1.5 HP to 20 HP at different voltages
- Fuse rating: 20A (RK5), 45A (J), short circuit rated to 10kA
- Terminal size: 2.5 mm² to 6 mm², AWG 10
- Recommended tightening torque: 1.7 Nm
- Mounting: Knockout holes for M20 and 16mm, 2 to 4 mounting positions
- Dimensions: Millimetres, suited for industrial enclosures
- Standards: IEC 60947-1, 60947-3, UL508, CE, SEMKO, CB
Buy the Multicomp Series Isolator: LB324P
Order the Multicomp LB324P electrically operated enclosed switch disconnector online today. It provides safe and reliable isolation for industrial electrical systems, featuring a 4-pole configuration rated up to 32A and 690V. Designed for durability and ease of installation, it meets international standards including IEC and UL. Its robust construction includes knockout mounting holes for M20 and 16mm conduits, making it suitable for comprehensive automation and control applications. Invest in long-lasting safety with a high-quality industrial isolator switch for your electrical panels.
Get Multicomp LB324P today—built for reliable electrical switching and industrial safety.
Frequently Asked Questions
Where can I buy MULTICOMP PRO LB324P?
You can click on the BUY or RFQ button to purchase LB324P from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part LB324P?
You can download the LB324P datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of LB324P?
MULTICOMP PRO
