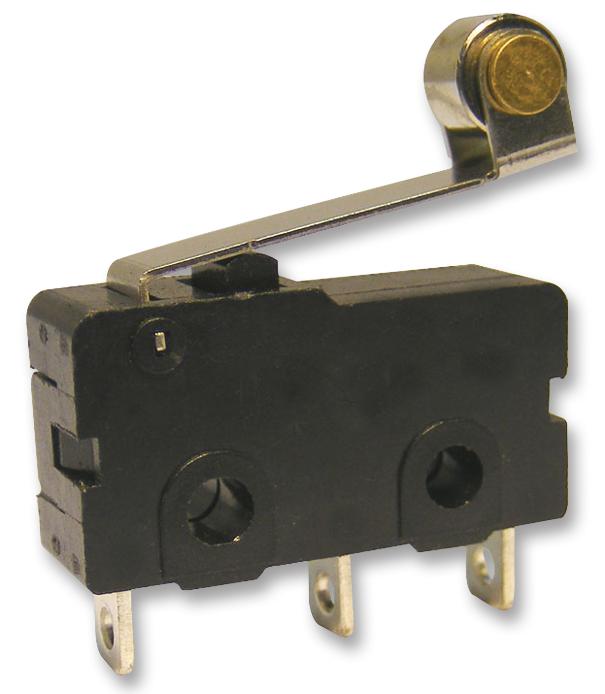

MULTICOMP PRO M140T01AE0505A Industrial Microswitch
The Microswitch with SPDT (Single Pole Double Throw) configuration features a roller actuator, making it suitable for applications requiring high durability and reliable switching. Rated at 5A and 125/250V AC, it offers a rugged design with a maximum contact resistance of 50mΩ and insulation resistance exceeding 100MQ at 500V DC. The switch boasts a mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles, with precise dimensions and operating force of 0.59N. It operates reliably within -55°C to +85°C environment and is suitable for industrial automation, machinery, and control systems.
MULTICOMP PRO M140T01AE0505A Industrial Microswitch Specifications:
- Rating: 5A, 125/250V AC
- Maximum Contact Resistance: 50mΩ
- Insulation Resistance: >100MQ at 500V DC
- Withstand Voltage: 1,000V AC for 1 minute
- Operating Frequency: Mechanical 60 operations/minute, Electrical 6 to 12 operations/minute
- Ambient Temperature: -55°C to +85°C
- Ambient Humidity: 85% RH
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles
- Contact Configuration: SPDT
- Switch Operation: Snap Action, Off-On
- Switch Terminals: Solder
- Contact Resistance: 50mΩ
- External Depth: 6.4mm
- External Width: 19.8mm
- Height: 10.6mm
- Operating Force: 0.59N
- Pre-travel: 2.4mm
- Series: M140T01
- Switch Case: PBT (Polybutylene Terephthalate)
Buy the Buy Multicomp Pro Microswitch Part Number M140T01AE0505A Online
Purchase the durable and reliable industrial microswitch with roller actuator online to ensure seamless automation. Rated at 5A and 125/250V AC, it offers a long mechanical and electrical life, making it perfect for machinery, control panels, and automation systems. The switch features a high insulation resistance and withstand voltage, ensuring safety and efficiency in demanding environments. Easy to install with solder terminals, it provides consistent performance over millions of cycles, supporting your industrial applications with precision and dependability.
Buy Multicomp Pro M140T01AE0505A microswitch now and experience unmatched reliability and long-lasting performance for industrial control needs.
