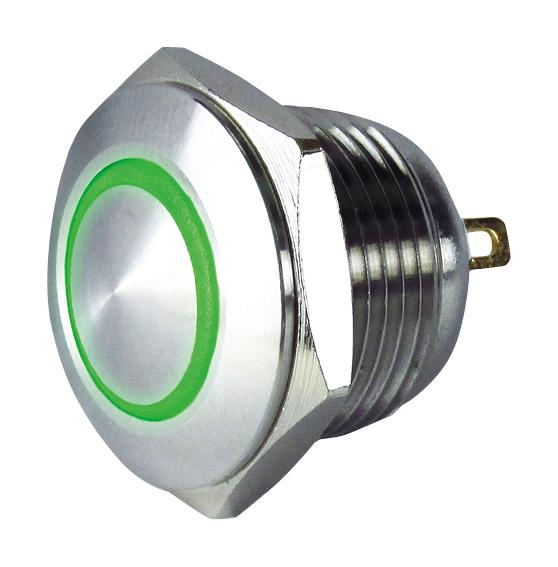

MULTICOMP PRO MC010882 Vandal Resistant Switch
The illuminated vandal resistant switch offers durability with stainless steel material, designed for panel mounting with a 16mm hole. It features a ring or domed top for enhanced visibility, and is available in green, red, and blue LED colours. Rated for 48V DC at over 100mA, with a dielectric strength of 2000V AC. It withstands vibration and shock, with a mechanical life of 1,000,000 cycles and an electrical life of 50,000. Suitable for industrial, security, and control applications with IP67 protection for tough environments.
MULTICOMP PRO MC010882 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC / min between live parts and ground, 1000V AC / min between terminals
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45% to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5 to 55Hz, 0.5mm amplitude
- Shock Resistance: 200m/s² operating, 500m/s² damage limits
- Mechanical Life: 1,000,000 cycles (momentary), 250,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder Terminal
- Weight: 11g
Buy the Multicomp Series Vandal Resistant Switch: MC010882
Enhance your control panel with this rugged vandal resistant illuminated switch, available in multiple LED colours including green, red, and blue. Designed for 16mm panel holes, it features a stainless steel body rated for 48V DC and over 100mA. This switch offers excellent dielectric strength, shock, and vibration resistance, with a mechanical life of 1,000,000 cycles. Perfect for industrial, security, and harsh environment applications, it provides IP67 protection and solder terminals for secure installation.
Buy Multicomp vandal resistant switch MC010882 now and experience unmatched durability, high shock resistance, and IP67 protection for harsh environments.
