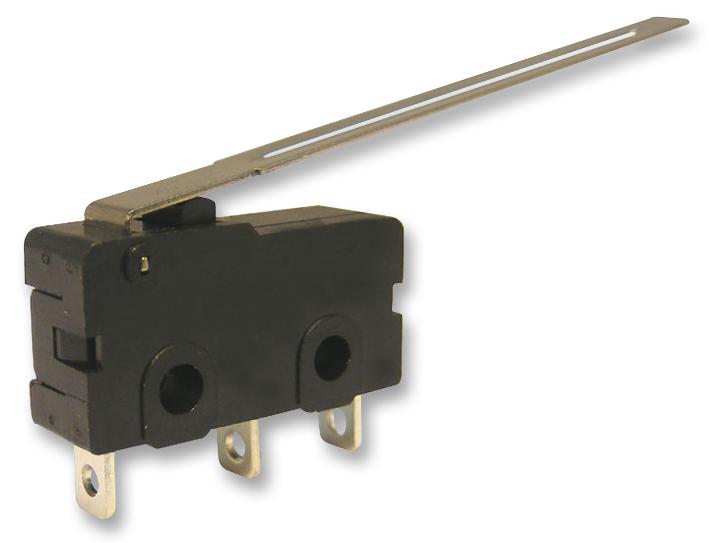

MULTICOMP PRO M140T01AE0507A Industrial Micro Switch
The M140T01-AE0507A is a single-pole double-throw microswitch with a long lever actuator, housed in a durable PBT case. It features solder terminals, a maximum contact resistance of 500 milliohms, and an insulation resistance above 100 megaohms at 500V DC. Capable of withstanding 1000VAC for one minute, it supports up to 5A at 125/250V AC and has a mechanical life of 1,000,000 cycles. Suitable for industrial automation, control systems, and machinery requiring reliable, long-lasting switching performance.
MULTICOMP PRO M140T01AE0507A Industrial Micro Switch Specifications:
- Rating: 5A, 125/250V AC
- Maximum Contact Resistance: 500mΩ
- Insulation Resistance: >100MΩ at 500V DC
- Withstand Voltage: 1000V AC for 1 minute
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles at rated load
- Contact Configuration: SPDT
- Switch Type: Snap Action
- Actuator Style: Long Lever
- Switch Operation: Off-On
- Operating Force Max: 45gf (0.44N)
- External Dimensions: Width 19.8mm, Depth 6.4mm, Height 10.6mm
- Operating Temperature Range: -25°C to +85°C
- Ambient Humidity: Up to 85% RH
- Switch Terminals: Solder
Buy the Buy multicomp microswitch Part Number M140T01AE0507A Online
Order the multicomp microswitch with long lever actuator online today to benefit from fast delivery and competitive pricing. This durable SPDT switch ensures reliable performance in automation, machinery, and control applications. Featuring a robust PBT case, solder terminals, and high resistance to environmental factors, it supports 1,000,000 mechanical cycles and 50,000 electrical cycles at rated load. Ideal for industrial settings where dependable switching and longevity are essential, purchase now and enhance your control system performance.
Buy multicomp microswitch M140T01AE0507A now and experience reliable switching with long lever design suitable for industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO M140T01AE0507A?
You can click on the BUY or RFQ button to purchase M140T01AE0507A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part M140T01AE0507A?
You can download the M140T01AE0507A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of M140T01AE0507A?
MULTICOMP PRO
