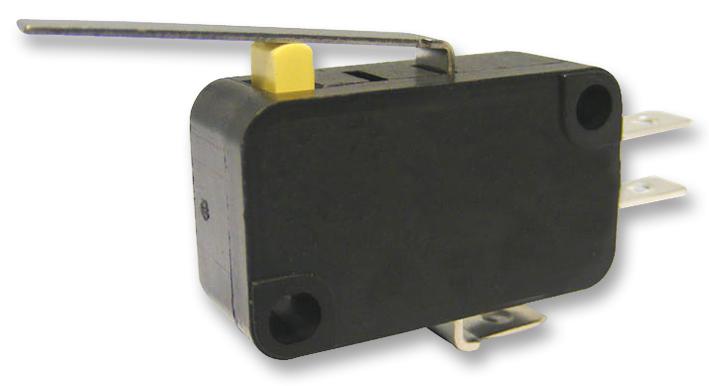

MULTICOMP PRO M141T02AC0303D Microswitch
This microswitch features SPDT configuration with a lever actuator, rated for 10A, 125/250V AC, suitable for switching applications requiring high reliability. Its mechanical lifespan is 1,000,000 cycles, and electrical life is 50,000 cycles at rated load. The switch provides quick connect and solder terminals, with external dimensions of 9.7mm depth, 27.8mm width, and 15.8mm height. It operates within a temperature range of -55°C to +85°C, with withstand voltage of 1,000V AC for 1 minute and insulation resistance exceeding 100MQ at 500V DC. Designed for industrial automation and control systems, the switch offers durable performance for demanding environments.
MULTICOMP PRO M141T02AC0303D Microswitch Specifications:
- Rating: 10A, 125/250V AC
- Maximum Contact Resistance: 25Ω
- Insulation Resistance: >100MQ 500V DC
- Withstand Voltage: 1,000V AC for 1 minute
- Operating Frequency: Mechanical 60 ops/min, Electrical 6-12 ops/min
- Ambient Temperature: -55°C to +85°C
- Ambient Humidity: 85% RH
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles at rated load
- Contact Configuration: SPDT
- Microswitch Type: Snap Action
- Actuator Style: Lever
- Switch Operation: Off-On
- Switch Terminals: Quick Connect, Solder
- External Depth: 9.7mm
- External Width: 27.8mm
- Height: 15.8mm
- Operating Force: 0.98N
- Pre-travel: 3.2mm
- Series: M141T01
- Switch Case Material: PBT (Polybutylene Terephthalate)
Buy the Multicomp Series Microswitch: SPDT Lever - 10A 125-250V AC
Order the durable Microswitch with SPDT configuration and lever actuator online today. Rated for 10A at 125/250V AC, this switch offers over a million mechanical cycles and high insulation resistance. Its compact size (9.7mm depth, 27.8mm width, 15.8mm height) makes it ideal for industrial automation, control panels, and machinery. With quick connect and solder terminals, it ensures effortless installation. Enhance your control system reliability by purchasing this high-performance microswitch today, designed to withstand harsh environments and long-term operation.
Buy Multicomp Microswitch with SPDT lever now and experience unmatched reliability and performance in industrial automation and control systems.
