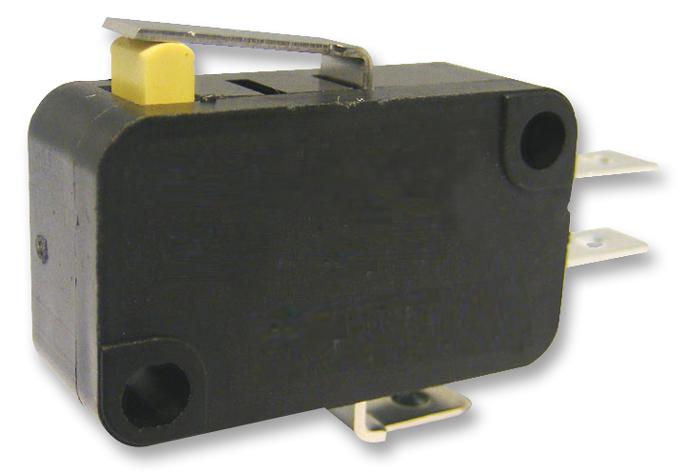

MULTICOMP PRO M141T02AC0304D SPDT Microswitch
This is a SPDT microswitch with a short lever, designed for quick and reliable switching in various applications. It features a snap-action operation, a maximum operating force of 1.97N, and an operating temperature range from -55°C to +85°C. The switch is rated for 10A at 125/250V AC, with durability up to 1,000,000 mechanical cycles and 50,000 electrical cycles. It has quick connect terminals, a compact size with external dimensions of 27.8mm width, 15.8mm height, and 9.7mm depth, and is made from PBT material, ensuring high durability and performance.
MULTICOMP PRO M141T02AC0304D SPDT Microswitch Specifications:
- Rating: 10A at 125/250V AC
- Maximum Contact Resistance: 25mΩ
- Insulation Resistance: >100MΩ at 500V DC
- Withstand Voltage: 1,000V AC for 1 minute
- Operating Frequency: Mechanical 60 ops/min, Electrical 6-12 ops/min
- Ambient Temperature: -55°C to +85°C
- Ambient Humidity: 85% RH
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles at rated load
- Contact Configuration: SPDT
- Switch Type: Snap Action
- Actuator Style: Short Lever
- Switch Operation: Off-On
- Operating Force Max: 1.97N (201gf)
- Switch Terminals: Quick Connect
- External Depth: 9.7mm
- External Width: 27.8mm
- Height: 15.8mm
- Pre-travel: 1.6mm
- Series: M141T01
- Switch Case: PBT (Polybutylene Terephthalate)
- Terminal Type: Quick Connect
Buy the Multicomp Series Short Lever SPDT Switch: M141T02AC0304D
Purchase the multicomp Series Short Lever SPDT Microswitch online today for high durability and reliable switching performance. This compact switch offers a rated current of 10A at 125/250V AC, with quick connect terminals for easy installation. Designed for durability, it features a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles. Ideal for automation, control systems, and industrial applications, its compact size and high-quality materials ensure optimal performance in demanding environments. Order now and enhance your projects' switching reliability.
Order your multicomp Series Short Lever SPDT Switch today and give your projects the dependable quality they deserve, ensuring reliable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO M141T02AC0304D?
You can click on the BUY or RFQ button to purchase M141T02AC0304D from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part M141T02AC0304D?
You can download the M141T02AC0304D datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of M141T02AC0304D?
MULTICOMP PRO
