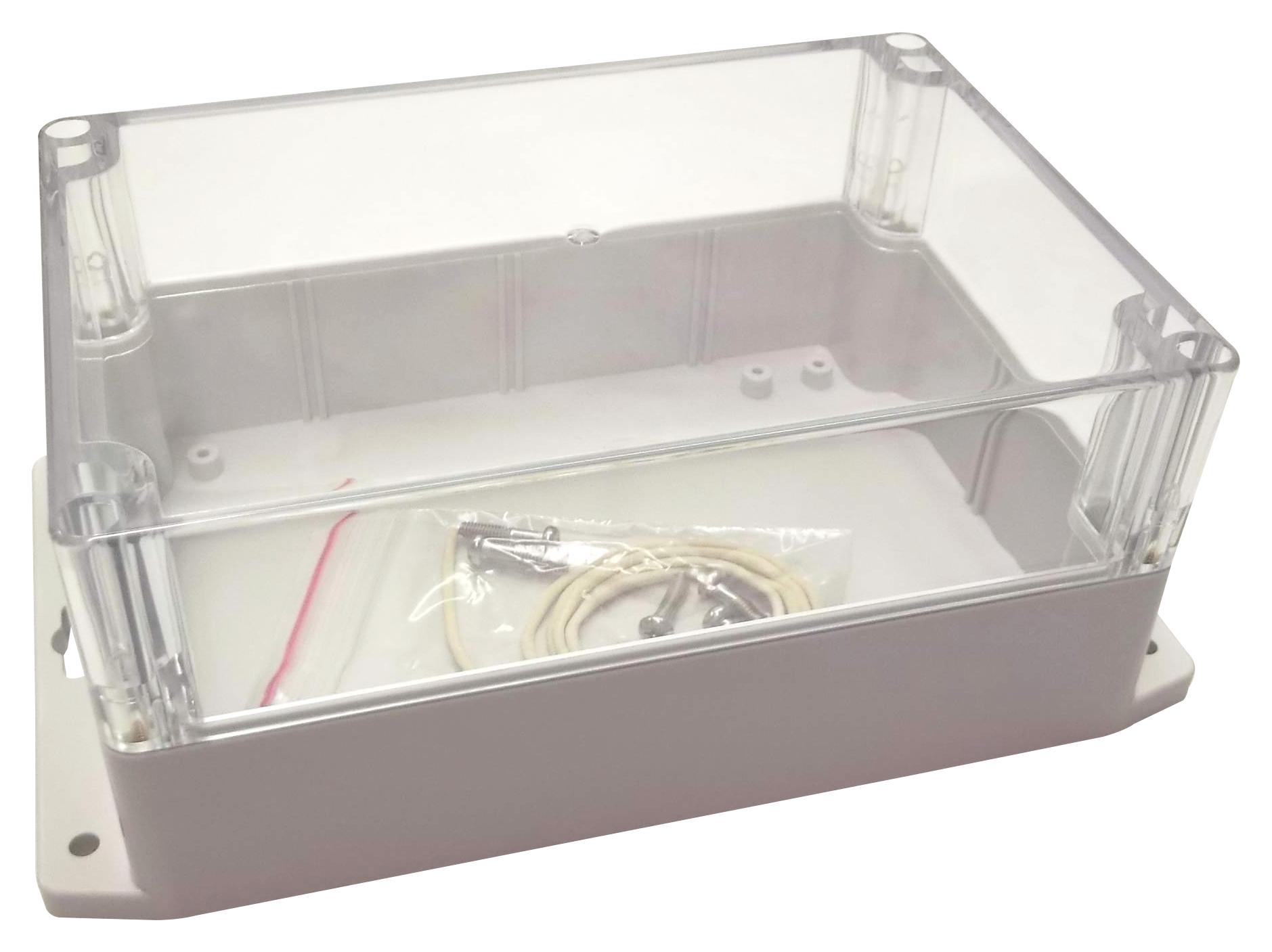

MULTICOMP-PRO MC001109 Sealed Plastic Enclosure
Sealed plastic enclosures designed for electrical and electronic applications, available in polycarbonate and ABS materials. They feature mounting flanges for easy wall installation, with options for clear or light grey lids. The polycarbonate variants operate from -40°C to 120°C, providing high impact resistance, while ABS variants operate from -20°C to 80°C. Equipped with external mounting holes and internal guide slots for PCB mounting, these enclosures ensure protection against dust and hose ingress, adhering to IP65 standards, ideal for durable, weatherproof device enclosures in industrial settings.
MULTICOMP-PRO MC001109 Sealed Plastic Enclosure Specifications:
- Material: Polycarbonate (UL94-HB), Operating temperature: -40°C to 120°C, Impact resistant, Clear or light grey lids
- Material: ABS (UL94-HB), Operating temperature: -20°C to 80°C, Dark grey color, Mounting flange for wall mounting
- Design: External mounting holes for pan head or machine screws, Internal guide slots for vertical PCB mounting, Sealing system with tongue and groove plus EPDM gasket
- Protection Level: IP65 Dust and Hoseproof, Suitable for outdoor and harsh environments, Dimensions vary by model, typically around 64 x 58 x 35 mm to 222 x 146 x 90 mm
- Fixing: Bosses for PCB fixing with M3X4mm self-tapping screws, Compatible with M4X20, M4, M3X4 self-tapping, and other standard screws for installation
- Features: Sealed design prevents ingress of moisture and dust, Easy wall mounting, Improved internal component arrangement with guide slots
- Compliance: IP65 rating, suitable for industrial and outdoor applications, Thermally stable with high impact resistance, offering durability
- Lids: Available in clear for visual inspection or light grey for general use, constructed with durable molded plastic materials, high impact resistance
- Application: Suitable for electronics, control panels, outdoor equipment, and any application requiring weatherproof, rugged enclosures
- Additional: Moulded in UL94-HB approved plastics, wide temperature range, supports easy assembly and maintenance, available in multiple sizes
Buy the Multicomp Series Enclosure: Sealed Polycarbonate and ABS Enclosures MC001109
Order the Sealed Plastic Enclosure in polycarbonate or ABS from Multicomp Pro today and ensure your devices are protected against dust and moisture. These enclosures feature easy wall mounting with durable, weatherproof design suitable for outdoor or industrial use. With a high IP65 rating, they safeguard internal components from harsh environmental factors. Choose from clear or light grey lids for visual inspection or discreet operation. With precise internal features and robust construction, this enclosure offers reliable, long-lasting protection for electronic and electrical applications. Shop online now for quick delivery.
Buy Multicomp Series Enclosure MC001109 now and experience unmatched protection, durability, and easy mounting for your electrical projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001109?
You can click on the BUY or RFQ button to purchase MC001109 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001109?
You can download the MC001109 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001109?
MULTICOMP-PRO
