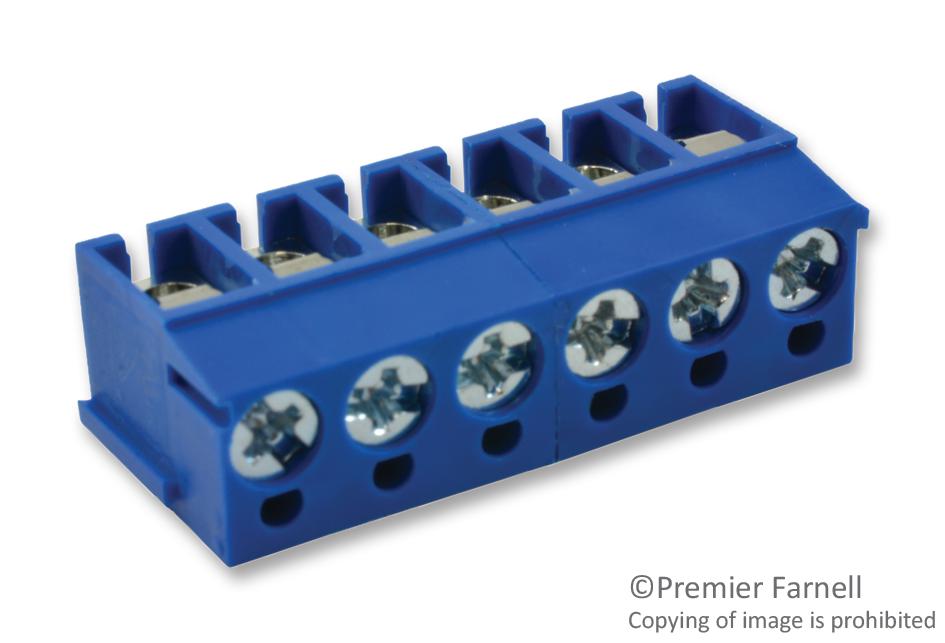

MULTICOMP PRO MA522500M06 Eurostyle Terminal Block
The MA522-500M06 is a 6-position, 16A wire-to-board Eurostyle terminal block designed for industrial applications. It features through-hole mounting with a right-angle design and screw terminal connection for secure wiring. The contacts are made of tin-plated brass, providing reliable conductivity, while the polyamide 66 housing offers durability and insulation. Equipped with a tin-plated phosphor bronze wire protector and M3 steel-zinc-plated screw, it withstands temperatures from -40°C to 105°C, ensuring stable performance in various environments.
MULTICOMP PRO MA522500M06 Eurostyle Terminal Block Specifications:
- Pitch: 75mm
- Poles: 2 to 3Poles
- Housing Material: PA66
- Spring: Brass, Tin Plated
- Contact: Brass, Tin Plated
- Screw Thread: M3, Steel, Zinc Plated
- Wire Size: 14AWG to 22AWG
- PCB Hole Diameter: 1.3mm
- Tightening Torque, Max: 4Lb-in
- Operating Temperature: -40°C to +105°C
- Nominal Current: 16A
- Nominal Cross Section: 2.5mm²
- Maximum Load Current: 16A
- Insulating Material: PA
- Nominal Voltage: 300V
- RoHS: Compliant
Buy the Buy Premier Farell Eurostyle Terminal Block Part Number MA522-500M06 Online
Secure your wiring with the Premier Farell Eurostyle terminal block MA522-500M06, featuring six poles, a robust polyamide housing, and reliable screw connections. Designed for industrial applications, it supports wire sizes from 14 to 22 AWG and operates efficiently within a temperature range of -40°C to 105°C. With a maximum current of 16A and a voltage rating of 300V, this high-quality terminal block offers durability and safety for your electrical system needs. Purchase online now for fast, reliable delivery.
Order your Premier Farell Series MA522-500M06 Eurostyle terminal block today and ensure dependable, secure wiring for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MA522500M06?
You can click on the BUY or RFQ button to purchase MA522500M06 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MA522500M06?
You can download the MA522500M06 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MA522500M06?
MULTICOMP PRO
