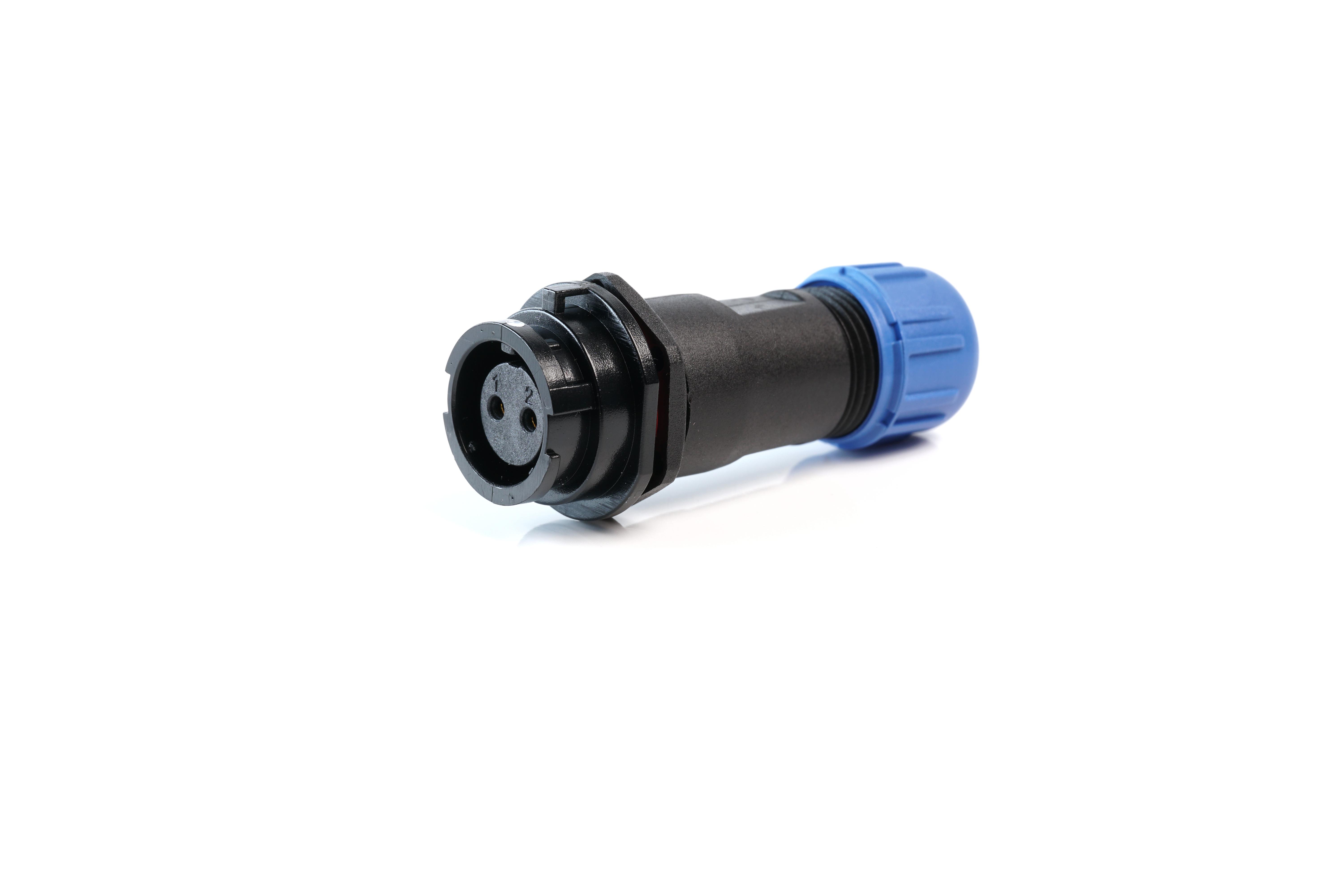

MULTICOMP-PRO MP002637 IP67 industrial connector
The MP-T13 IP67 series connectors are highly durable, featuring bayonet coupling for quick, tool-free connections. Designed for outdoor and harsh environments, these IP67-rated connectors offer reliable dust and water resistance. Available in cable, panel, and in-line configurations, they accommodate 2, 3, 4, 5, and 7 poles, with solder termination for secure wiring. Their compact design fits a 13mm cut-out and includes optional protective caps. These connectors are ideal for automation, process control, medical, security, and industrial applications requiring rugged, versatile, and weatherproof connectivity solutions.
MULTICOMP-PRO MP002637 IP67 industrial connector Specifications:
- IP Rating: IP67
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Coupling: Bayonet
- Temperature Range: -40°C to +80°C
- Contact Resistance: 2.5-5 mΩ
- Rated Current: 13A (2P), 5A (3P, 4P, 5P, 7P)
- Rated Voltage: Up to 250V
- Mating Cycle: 500
- Solder Termination: Yes
- Contact Diameter: 1-1.6 mm
- Suitable for cable outer diameter: 4mm to 6.5mm/ Smm to 8mm
- Max. Operating Temperature: 260°C for insert
- Ingress Protection: Dust and waterproof
- Designed for harsh environments and outdoor applications
Buy the Buy Multicomp IP67 Connector Part Number MP002637 Online
Purchase the Multicomp IP67 industrial connector MP002637 online today. Engineered for durability, it features bayonet coupling for quick installation, offers reliable IP67 dust and water resistance, and supports multiple configurations from 2 to 7 poles. Ideal for outdoor automation, control systems, and harsh environments, this rugged connector ensures secure, long-lasting electrical connections. With solder termination and a compact design, it fits standard 13mm cut-outs and includes optional protective caps for added protection. Order now for high-performance connectivity that meets industrial standards.
Get Multicomp IP67 connector MP002637 today—built for rugged outdoor use, featuring quick bayonet coupling and secure solder connections for reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002637?
You can click on the BUY or RFQ button to purchase MP002637 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002637?
You can download the MP002637 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002637?
MULTICOMP-PRO
