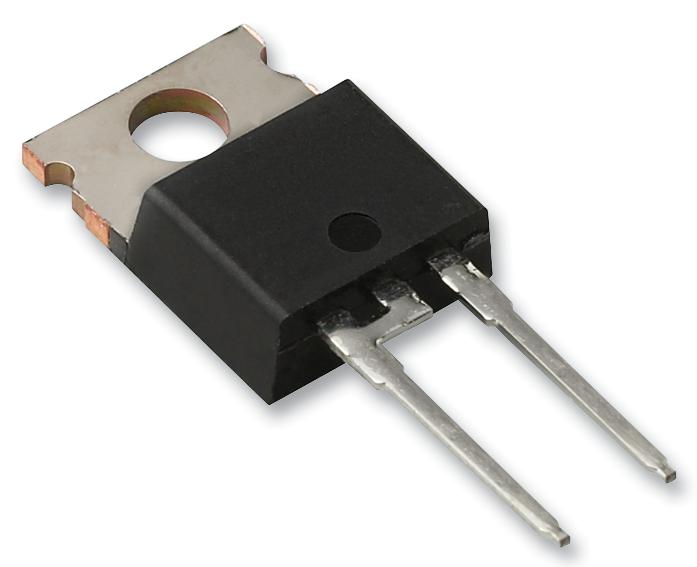

MULTICOMP PRO MBR1050 Schottky Rectifier
The MBR1050 is a Schottky Barrier Rectifier suitable for low voltage, high frequency inverters, free-wheeling, and polarity protection applications. It features a silicon rectifier metal construction with a guard ring for transient protection, offering low power loss, high efficiency, high current capability, low forward voltage, and high surge capacity. Packaged in a TO-220AC molded plastic case with UL 94V-O flammability classification, it supports mounting in any position, with a reverse voltage of 50V, forward current of 10A, and operating temperature range from -55°C to +150°C, ensuring reliable performance in demanding environments.
MULTICOMP PRO MBR1050 Schottky Rectifier Specifications:
- Case: TO-220AC molded plastic
- Polarity: As marked on the body
- Weight: 0.08 ounces, 2.24 grams
- Reverse Voltage: 50V
- Forward Current: 10A
- Maximum RMS Voltage: 35V
- Maximum DC Blocking Voltage: 50V
- Peak Forward Surge Current: 150A for 8.3ms single half sine wave
- Maximum Forward Voltage: 0.8V at 10A @Ts=25°C
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Typical Junction Capacitance: 400pF at 1.0MHz
- Thermal Resistance Junction to Case: 25°C/W
Buy the Multicomp Pro MBR1050 – Reliable Schottky Rectifier for Industrial Applications
Upgrade your industrial power management with the Multicomp Pro Schottky Rectifier designed for high efficiency and reliable operation. Suitable for low voltage, high frequency inverters, free-wheeling, and polarity protection, it features a durable TO-220AC package, low forward voltage, and high surge current capacity. Its robust construction and wide temperature range make it ideal for demanding environments. Purchase online today to ensure your projects benefit from dependable rectification, reduced power loss, and optimal performance across various industrial and electronic applications.
Order your Multicomp Pro MBR1050 Schottky Rectifier today and enhance your power conversion systems with dependable, high-efficiency rectification solutions.
