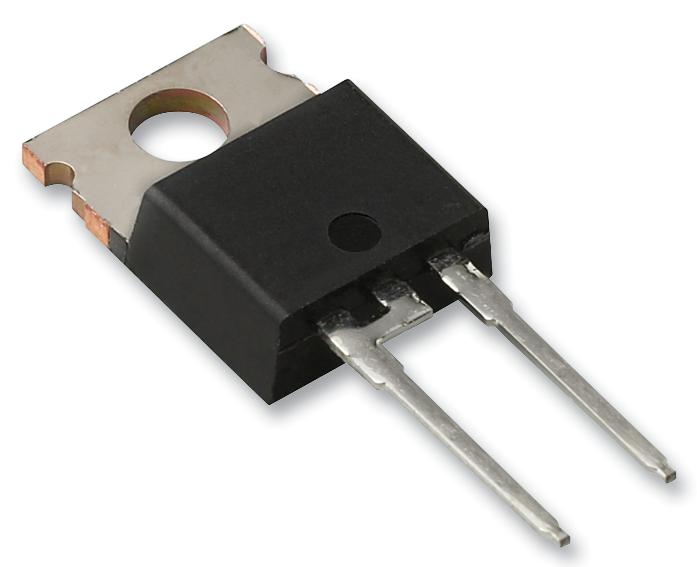

MULTICOMP PRO MBR1640 Schottky Rectifier
The MBR1640 is a high-efficiency Schottky barrier rectifier featuring a plastic TO-220AC package with UL 94-0 flammability rating. It provides low reverse leakage current, high surge current capacity, and guard ring protection against overvoltage, making it ideal for high-frequency rectification in power supplies, DC/DC converters, and polarity protection applications. Rated for voltages from 40 to 150V and a forward current of 16A, it offers robust electrical characteristics suitable for demanding industrial and electronic circuit applications, ensuring reliable performance and long-term durability.
MULTICOMP PRO MBR1640 Schottky Rectifier Specifications:
- Case: TO-220AC molded plastic with UL 94-0 flammability classification
- Polarity: As marked on the body
- Weight: 21.9 grams
- Reverse Voltage: 40 to 150 Volts
- Forward Current: 16 Amperes
- Maximum Recurrent Peak Reverse Voltage: 40 to 150V
- Max. RMS Voltage: 28 to 105V
- Max. DC Blocking Voltage: 40 to 150V
- Max. Forward Voltage at 16A: 0.7 to 0.92V
- Reverse Current at 25°C: 0.1 to 0.15mA
- Operating Temperature Range: -55°C to +150°C
- Peak Forward Surge Current: 150A for 8.3ms
- Thermal Resistance, Junction to Case: 2°C/W
- Mounting Position: Any
- Storage Temperature Range: -55°C to +150°C
- Dimensions in inches (mm): Length 1.35(34.3), Width 0.89(22.6), Height 0.47(12.0)
Buy the Multicomp Pro MBR1640 – Reliable Schottky Rectifier for Industrial Applications
Purchase the Multicomp Pro MBR1640 online today for exceptional performance in power supply circuits. Designed for high surge currents and low leakage, this rectifier ensures efficient and reliable operation in high-frequency switching applications like DC/DC converters and polarity protection. Its durable plastic package meets UL 94-0 flammability standards, making it suitable for industrial environments. With a voltage range from 40 to 150V and a forward current of 16A, this rectifier provides robust, long-lasting power management for your electronic projects, ensuring optimal system efficiency and safety.
Get Multicomp Pro MBR1640 today—built for high efficiency, surge capacity, and reliable power rectification in demanding industrial circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MBR1640?
You can click on the BUY or RFQ button to purchase MBR1640 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MBR1640?
You can download the MBR1640 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MBR1640?
MULTICOMP PRO
