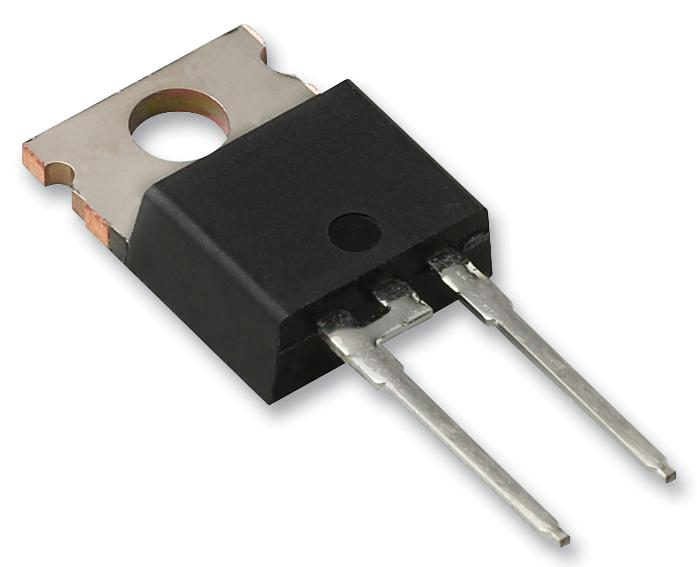

MULTICOMP PRO MBR1660 Schottky Barrier Rectifier
The Schottky Barrier Rectifier MBR1660+ is optimized for high-efficiency power rectification in switching power supplies, DC/DC converters, and polarity protection. Featuring a low forward voltage drop of approximately 0.75V at 16A, it offers low reverse leakage current, high surge current capability, and excellent thermal performance. The device is mounted on a TO-220AC package with a plastic UL 94V-0 flammability rating, ensuring durability and safety. Suitable for high-frequency rectification, it operates reliably over a temperature range of -55°C to +150°C, providing robust, energy-efficient performance in a compact form.
MULTICOMP PRO MBR1660 Schottky Barrier Rectifier Specifications:
- Case: TO-220AC molded plastic with UL 94V-0 flammability rating
- Terminals: Pure tin plated, solderable per MIL-STD-750, method 2026
- Reverse Voltage: 60 to 150 Volts
- Forward Current: 16 Amperes
- Peak Forward Surge Current: 150A (8.3ms single half sine-wave)
- Maximum Recurrent Peak Reverse Voltage: 60 to 150V
- Maximum RMS Voltage: 42 to 105V
- Maximum DC Blocking Voltage: 60 to 150V
- Maximum Forward Voltage at 16A: 0.75 to 0.92V
- Maximum Reverse Current at 25°C: 0.15 to 0.1 mA
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: ~2°C/W junction to case
- Mounting Position: Any
- Weight: 21.9 grams
Buy the Multicomp Schottky Barrier Rectifier – Reliable Power Diode for Industrial Applications
Order the Schottky Barrier Rectifier from Multicomp now for high-performance power rectification in industrial and electronic applications. Featuring low forward voltage, high surge current capability, and a UL-rated plastic package, this diode ensures energy-efficient operation and durability. Suitable for high-frequency switching power supplies, DC/DC converters, and polarity protection, it operates reliably over a wide temperature range. Easily mounted on any position, it guarantees dependable performance for demanding electronic systems. Improve your power circuits with this robust, certified rectifier today.
Buy Multicomp Schottky Barrier Rectifier now and experience unmatched reliability and high efficiency in power management solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MBR1660?
You can click on the BUY or RFQ button to purchase MBR1660 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MBR1660?
You can download the MBR1660 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MBR1660?
MULTICOMP PRO
