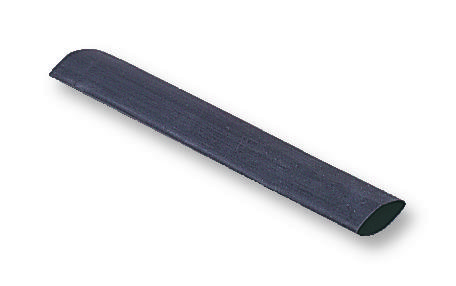

MULTICOMP PRO SPTW24 Heat Shrink Tubing
This ultra-thin wall heat shrink polyolefin tubing is designed for high-density wiring and space-constrained applications. It offers a shrink ratio of 2:1, with a maximum operating temperature of 135°C and a shrink temperature of 100°C. Made from durable polyolefin, it provides excellent electrical insulation, low-temperature flexibility, and flame resistance. Suitable for protecting and insulating electrical components, it resists heat shock, heat aging, and corrosion, ensuring long-lasting performance. Available in various sizes, it is ideal for industrial wiring, electronics, and automotive uses, combining flexibility with reliable insulation in tight spaces.
MULTICOMP PRO SPTW24 Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to 135°C
- Shrink Temperature: 100°C
- Material: Polyolefin
- Standard Color: Black
- Tensile Strength: 10 MPa (ISO 37)
- Ultimate Elongation: 250% (ISO 37)
- Heat Shock Resistance: No dripping, cracking or flowing at 250°C
- Heat Ageing: 168hrs at 175°C with 150% elongation
- Low Temperature Flexibility: No cracking at -55°C
- Flammability: Pass (ASTM D876)
- Electric Strength: ≥20kV/mm (IEC 243)
- Corrosion Resistance: No corrosion on copper mirror test
- Nominal Diameter (Min/Max): 1.2mm (0.046 inch) / 0.6mm (0.023 inch) for size SPTW12, up to 6.4mm (0.25 inch) / 3.2mm (0.125 inch) for SPTW64
- Reel Length: 1.2 meters per roll
Buy the Buy Multicomp Polyolefin Heat Shrink Tubing Part Number SPTW24 Online
Purchase the high-quality Multicomp series heat shrink tubing online today and enhance your wiring projects with dependable insulation and protection. Designed for high-density applications, this polyolefin tubing offers excellent electrical insulation, flexibility at low temperatures, and flame resistance. Available in multiple sizes, including the versatile SPTW24, it ensures a perfect fit for various wiring needs. With a 2:1 shrink ratio, it simplifies installation in restricted spaces, providing durable performance against heat, chemicals, and corrosion. Buy now to secure fast delivery and proven reliability.
Order your Multicomp Series SPTW24 ultra-thin wall polyolefin tubing today and ensure reliable insulation in tight wiring spaces with high-quality performance.
