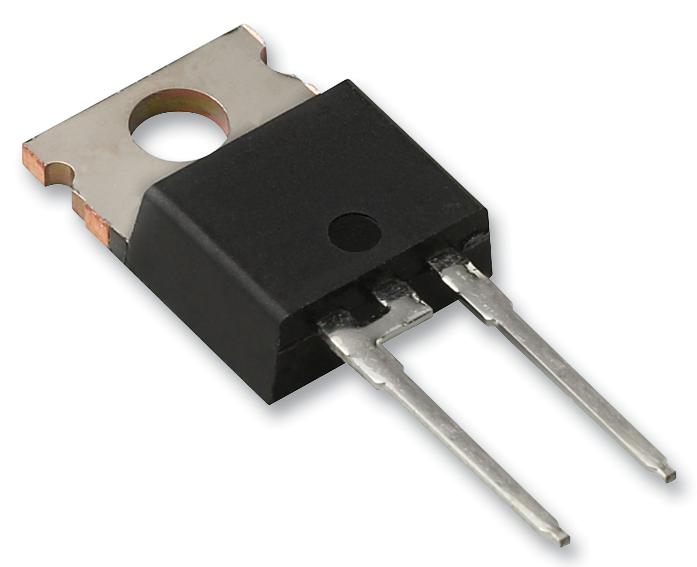

MULTICOMP PRO MBR850 Schottky Diode
The MBR850 is a high-efficiency Schottky barrier rectifier designed for low voltage, high frequency applications such as inverters, free-wwheeling, and polarity protection. It features a silicon rectifier with a guard ring for transient protection, low power loss, high surge capacity, and a plastic housing compliant with UL 94V-O. With a reverse voltage of 50V and a forward current of 8A, this diode offers reliable performance in various electrical circuits, characterized by low forward voltage drop and fast switching capabilities, making it ideal for modern high-speed electronic systems.
MULTICOMP PRO MBR850 Schottky Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 50V
- Maximum RMS Voltage Vems: 35V
- Maximum DC Blocking Voltage Voc: 50V
- Maximum Average Forward Rectified Current: 8A
- Peak Forward Surge Current: 150A (8.3ms single half sine-wave)
- Maximum Forward Voltage at IF=8A: 0.8V
- Maximum Forward Voltage at IF=16A: 0.95V
- Maximum Reverse Curent at Ta=25°C: 0.1mA
- Junction Capacitance: 250pF
- Thermal Resistance Junction to Case: 3°C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Physical Case: TO-220AC molded plastic
- Polarity: Marked on the body
- Weight: 0.08 ounces, 2.24 grams
- Mounting Position: Any
- Dimensions: Length approximately 20.32mm (0.8 inches), width 10.16mm (0.4 inches), height 4.83mm (0.19 inches)
Buy the Multicomp Series Rectifier: MBR850
Purchase the Multicomp Series MBR850 Schottky diode online today and enhance your electronic circuits with its high efficiency, low forward voltage, and robust surge capacity. Designed for low voltage and high frequency applications, this diode offers fast switching and reliable performance in inverter, free-wheeling, and polarity protection roles. Its UL-rated plastic package ensures safety and durability. Get yours now for high-quality, dependable electrical performance in your industrial or consumer projects, backed by verified specifications and fast delivery options.
Order your Multicomp Series MBR850 high-current Schottky diode today and ensure reliable, efficient performance for your low-voltage high-frequency projects.
