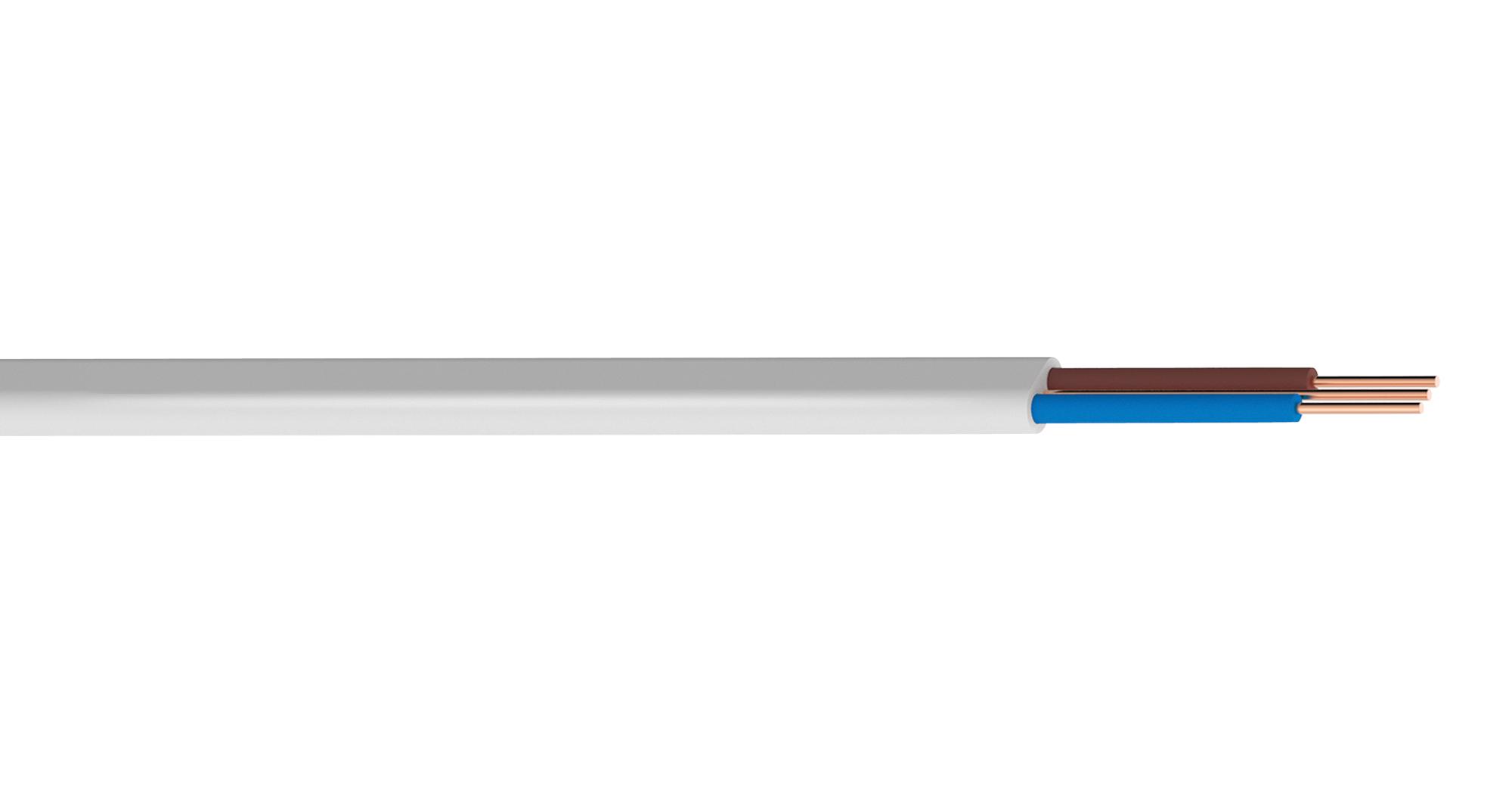

MULTICOMP-PRO PP002172 Twin and Earth Cable
This twin and earth LSZH cable is designed for safe installation in walls, channels, or embedded in plaster, minimizing fire, smoke, and toxic fume risks. Compliant with BS 7211, IEC standards, it features cross-linked polyethylene insulation and a low smoke zero halogen sheath, ensuring safety in hazardous environments. Suitable for indoor electrical wiring, it offers various cross-sectional options from 1mm² to 10mm², with solid or stranded copper conductors. Reels are available in 100 meters or sold per meter, ideal for industrial electrical projects requiring high safety and reliability.
MULTICOMP-PRO PP002172 Twin and Earth Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: -5°C to +70°C
- Minimum Bending Radius: 3× overall diameter
- Conductor Material: Class 1 Copper for 1–2.5mm², Class 2 Stranded for 4–10mm², Stranded for 4–16mm² circuit protection conductor
- Insulation: XLPE (Cross-Linked Polyethylene) Type GP8
- Sheath: LSZH (Low Smoke Zero Halogen) Type LTS2
- Cable Standards: BS 7211, IEC 60754-1, IEC 60754-2, IEC 61034, BS EN/IEC 60332-1-2
- Conductor Cross-Sectional Area: 1mm² to 10mm²
- Dimensions: Available in reels of 100m or per metre, nominal cross-sectional individual conductors from 1mm² to 10mm²
- Physical Characteristics: Safe for wall, board, or channel installation, fire-resistant, with low smoke emission
Buy the Multicomp 624-B U+2013 Reliable Twin and Earth LSZH Cable for Industrial Applications
Order multicomp 624-B twin and earth LSZH cable online today for safe, fire-resistant wiring solutions in industrial and hazardous environments. Designed with XLPE insulation and LSZH sheath, these cables provide excellent safety, durability, and compliance with BS 7211 standards. Available in various sizes from 1mm² to 10mm², they are suitable for installing in walls, conduits, or embedded in plaster. Reels of 100 meters or units per meter ensure flexibility for your project, delivering high performance and peace of mind for professional electrical installations.
Buy multicomp 624-B twin and earth LSZH cable now and ensure safe, reliable electrical connections with fire-resistant, low smoke cable options.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002172?
You can click on the BUY or RFQ button to purchase PP002172 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002172?
You can download the PP002172 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002172?
MULTICOMP-PRO
