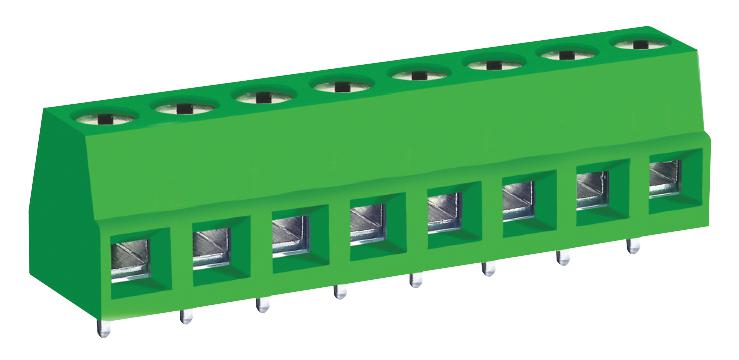

MULTICOMP PRO MC000028 PCB Terminal
This 5mm screw PCB terminal offers a reliable connection solution with a compact single-mold design. Suitable for PCB wiring, it supports wire ranges from 12 to 26 AWG and has a pitch of 5mm. Made from polyamide 66 with nickel-plated steel cage clamp and brass tin-plated terminals, it complies with RoHS standards. It supports up to 16 amperes and 300V AC, with insulation resistance exceeding 2000 MΩ. Designed for operating temperatures from -40°C to +105°C, it features a sturdy construction for safe electrical connections in various electronic applications.
MULTICOMP PRO MC000028 PCB Terminal Specifications:
- Current Rating: 16 Amperes
- Operating Voltage: 300V AC
- Insulation Voltage: 2000V AC
- Insulation Resistance: >2000 MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 12 to 26 AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 7 Ib-inch
- Pitch: 5mm (0.197 inch)
- Material: Polyamide 66 - Green
- Cage Clamp Material: Steel Ni plated
- Terminal Material: Brass Tin plated
- Dimension (2 Poles): A = 10mm (0.394 inch)
- Dimension (12 Poles): A = 60mm (2.362 inch)
Buy the Buy Multicomp PCB Terminal Part Number MC000028 Online
Order the Multicomp PCB Terminal designed for secure and efficient connections in electronic and electrical applications. With a 5mm pitch, support for 12-26 AWG wire, and robust steel and brass construction, this terminal offers excellent durability and performance. Suitable for PCB wiring, it supports up to 16A and 300V AC, meeting RoHS standards. Its compact design ensures easy integration into your circuit assembly, making it ideal for electronics manufacturers and hobbyists seeking dependable terminal blocks for their projects.
Buy Multicomp MC000028 now and experience reliable PCB connections for your electronic projects with durable materials and easy installation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000028?
You can click on the BUY or RFQ button to purchase MC000028 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000028?
You can download the MC000028 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000028?
MULTICOMP PRO
