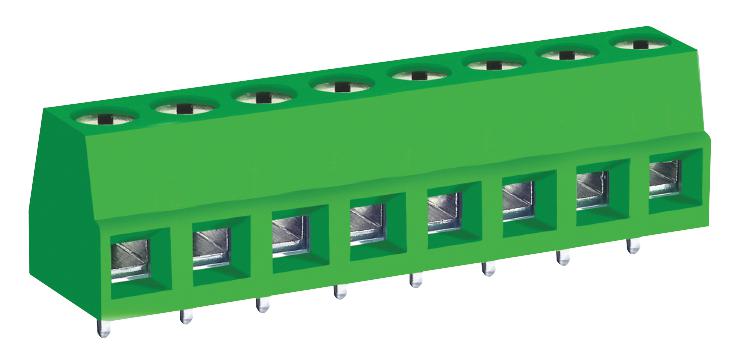

MULTICOMP PRO MC000031 PCB Terminal
This 5mm screw PCB terminal features a single mold design suitable for secure wire connections on PCBs. Made with polyamide 66 insulating body and nickel-plated steel cage clamps, brass terminals, and steel screws, it ensures durability and reliable electrical contact. The terminal supports wire sizes from 12 to 26 AWG and withstands voltages up to 300V AC with a current rating of 16A. Its compact 5mm pitch facilitates easy mounting in various electronic projects, making it ideal for automation, control systems, and PCB wiring applications. RoHS compliant and rated for temperatures from -40°C to +105°C.
MULTICOMP PRO MC000031 PCB Terminal Specifications:
- Current Rating: 16 Amperes
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 12 to 26 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5mm
- Poles: 2 to 12 (A: 10mm to 60mm)
- Material: Polyamide 66 - Green insulating body, steel Ni plated cage clamp, brass tin plated terminal, steel Ni plated screw
- Dimensions (mm): No. Pole and corresponding dimensions as per table
Buy the Multicomp Series PCB Terminal: 5mm Screw - MC000031
Enhance your electronic assemblies with this high-quality 5mm screw PCB terminal, supporting 16A and 300V AC. Designed with a polyamide insulation body and plated steel components, it offers durability and safe connections for wires 12 to 26 AWG. Compact and RoHS compliant, this terminal is ideal for automation, control panels, and PCB wiring. Easy to install with a screw torque of 7 Ib-inch, ensuring long-lasting and stable electrical performance. Buy online now for reliable project connectivity.
Order your multicomp Series PCB terminal MC000031 today and enhance your electronic projects with reliable, easy-to-install connection solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000031?
You can click on the BUY or RFQ button to purchase MC000031 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000031?
You can download the MC000031 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000031?
MULTICOMP PRO
