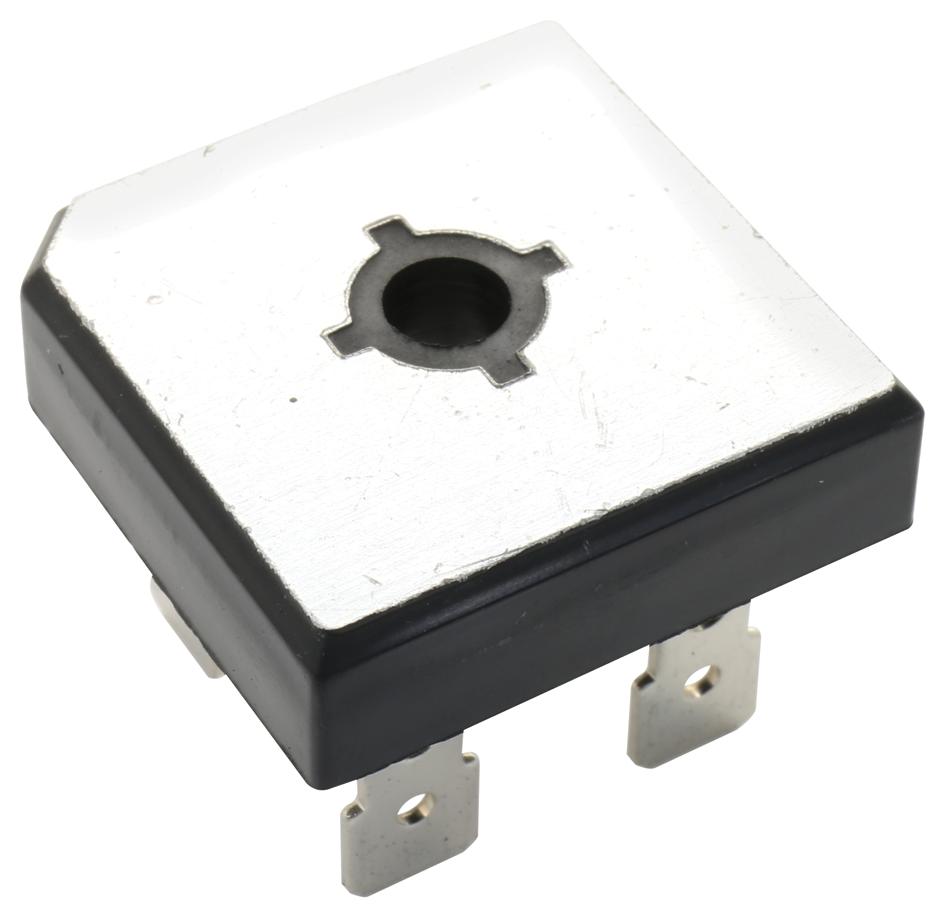

MULTICOMP PRO GBPC5006 Bridge Rectifier
The GBPC5006+ is a high-capacity bridge rectifier designed for use in power supply and electronic conversion circuits. It offers a surge overload rating of up to 400A, low forward voltage drop, and is capable of handling current up to 50A with a maximum repetitive peak reverse voltage of 600V. Its robust construction ensures reliable operation across a wide temperature range of -50°C to +150°C, with solderable FASTON terminals for easy mounting. Suitable for applications requiring efficient rectification with high current capacity and voltage stability.
MULTICOMP PRO GBPC5006 Bridge Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 600V
- Maximum RMS Bridge Voltage: 420V
- Average Forward Rectified Current: 50A @ 55°C
- Peak Forward Surge Current: 400A for 8.3ms
- Forward Voltage Drop at 25A: 1.1V
- Maximum Reverse Current at Rated DC Blocking Voltage: 10 pA
- Operating and Storage Temperature Range: -50°C to +150°C
- Mounting: Solderable FASTON terminals, 0.25"
- Electrical Isolation: 2,000V
- Surge Overload Rating: 400A
- Dimensions: 1.130 inches (28.7mm) length, 0.661 inches (16.8mm) width, with mounting hole spacing 1.114 inches (28.3mm)
Buy the Multicomp Series Bridge Rectifier: GBPC5006+
Order the Multicomp GBPC5006+ bridge rectifier online today to benefit from high current capacity of 50A and voltage rating of 600V. It features surge overload capability up to 400A, low forward voltage drop of 1.1V at 25A, and operates reliably across temperatures ranging from -50°C to +150°C. Its robust design includes solderable FASTON terminals and electrical isolation of 2,000V, making it ideal for industrial power supplies, equipment, and electronic circuits requiring durable, efficient rectification with high current and voltage stability. Available now for quick dispatch and dependable performance.
Buy Multicomp GBPC5006+ now and experience unmatched reliability and performance in high-current power rectification applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC5006?
You can click on the BUY or RFQ button to purchase GBPC5006 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC5006?
You can download the GBPC5006 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC5006?
MULTICOMP PRO
