MULTICOMP PRO MC000032 PCB Terminal
The 5mm Screw PCB Terminal is a single-mold, green polyamide insulator component suitable for PCB applications. It features a steel nickel-plated cage clamp and brass tin-plated terminal, designed for efficient wire connection. Capable of handling 16 Amperes at 300V AC with an insulation withstand voltage of 2000V AC and resistance over 2000 MΩ at 500V DC. Operating within -40°C to +105°C, it accepts wire ranges from 12 to 26 AWG with a wire strip length of 4mm to 5mm. The terminal's pitch is 5mm, with various pole configurations ranging from 2 to 12 poles. The screw torque is 7 lb-in, ensuring secure connections for industrial circuit wiring.
MULTICOMP PRO MC000032 PCB Terminal Specifications:
- Current Rating: 16 Amperes at 300V AC
- Min. Insulation Withstand Voltage: 2000V AC
- Insulation Resistance: >2000 MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 12 to 26 AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 7 lb-inch
- Pitch: 5mm (0.197 inch)
- Material: Insulating body polyamide 66 - green
- Cage Clamp: Steel Ni plated
- Terminal: Brass Tin plated
- Dimensions: Poles from 2 to 12 with lengths from 10mm to 60mm
- RoHS Compliant: Yes

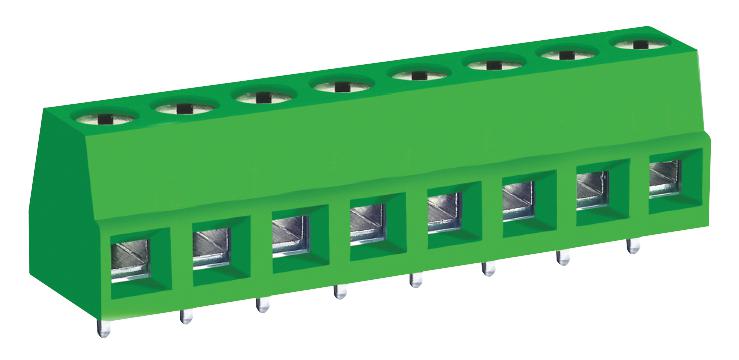

Buy the Multicomp 0302- Reliable PCB Terminal for Industrial Applications
Order the Multicomp PCB terminal with 5mm pitch, capable of handling 16A and 300V AC, for reliable, secure connections in industrial control systems. This component features a steel nickel-plated cage clamp and brass terminal, ensuring durability and corrosion resistance. Suitable for wire ranges from 12 to 26 AWG with a strip length of 4-5mm, the terminal's dimensions vary with pole count, from 2 to 12 poles. Perfect for factory automation, control panels, and electrical wiring projects requiring high safety standards and dependable performance.
Get Multicomp 0302 today—built for secure wiring and industrial durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000032?
You can click on the BUY or RFQ button to purchase MC000032 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000032?
You can download the MC000032 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000032?
MULTICOMP PRO
