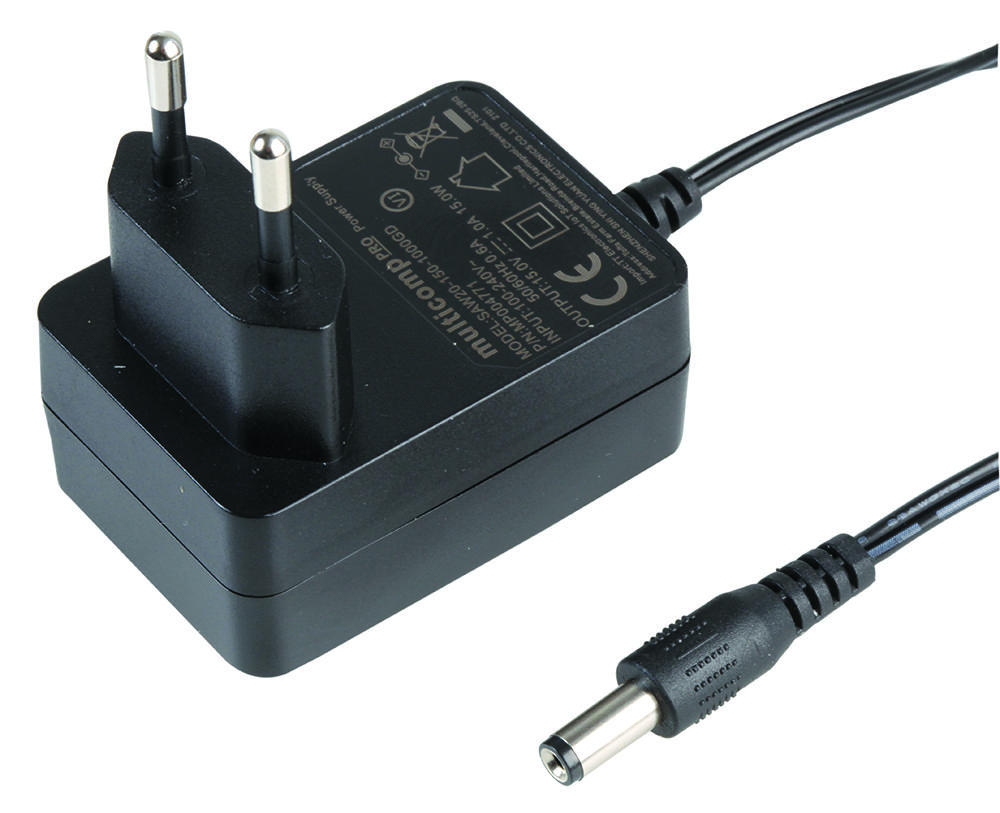

MULTICOMP PRO MP004771 Power Supply Adapter
The 15W EU Wall Plug Adapter provides a compact and efficient power solution for various applications, offering 15 Watts of continuous power with a 15V DC, 1A output. Its European fixed AC head and Level VI efficiency standard ensure reliable performance and energy savings. Compliant with RoHS and safety standards, it features overload and short-circuit protection, operating within a temperature range of 0°C to +40°C. Its size is 59mm by 40.9mm by 26.5mm, weighing approximately 120g, making it suitable for space-constrained environments requiring durable power adapters.
MULTICOMP PRO MP004771 Power Supply Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 4THz to 63Hz
- Input Current Rated: 0.6A Max
- Output Voltage Rating: +15V
- Output Current Range: 1A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Line Regulation: 11%
- Load Regulation: 45%
- Ripple & Noise: 200mVp-p
- Efficiency: 84.13% Min
- Over Current Protection: >1.2A
- Short-Circuit Protection: No Damage, self-recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Hi-Pot: 3000V AC 10mA 1min
- Leakage Current: 0.25mA max
- Size: 59mm (L) x 40.9mm (W) x 26.5mm (H)
- Weight: 120g
- Regulator Type: Switched Mode Power Supply
- Safety Standard: GS/CE EN60950-1
- EMI Standard: ENT 0003-2
- MTBF: 50,000 Hours
Buy the Multicomp Series Power Supply: 15W EU Wall Plug Adapter MP004771
Purchase the Multicomp 15W EU Wall Plug Adapter online today for a dependable power source suitable for various electronic devices. This high-efficiency, RoHS-compliant adapter offers a continuous 15W power output with a 15V DC, 1A rating. Its compact size and safety features, including overload and short-circuit protection, ensure long-lasting durability and optimal performance in space-constrained environments. Ideal for general power applications, it operates efficiently within a temperature range of 0°C to +40°C, making it the perfect choice for your electronics needs.
Get Multicomp 15W EU Wall Plug Adapter today—built for reliable power delivery in compact designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004771?
You can click on the BUY or RFQ button to purchase MP004771 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004771?
You can download the MP004771 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004771?
MULTICOMP PRO
