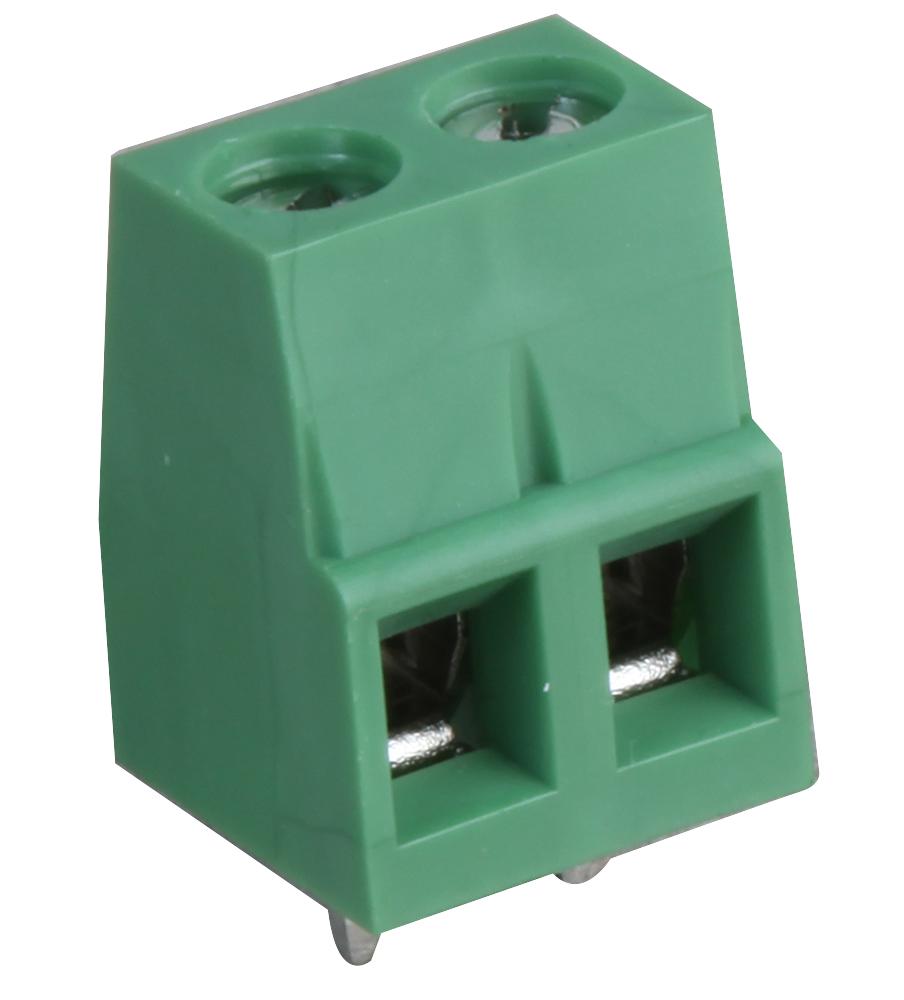

MULTICOMP PRO MC000034 Terminal Block
The MC000034 from Multicomp Pro is a versatile through-hole, two-position terminal block with screw fastening, featuring a 5.08mm pitch spacing. Designed for wire sizes from 26 AWG to 12 AWG, it includes a polyamide 66 housing and brass terminals with tin plating for durability and reliable conductivity. Operating efficiently within -40°C to 105°C, it supports right-angle wire attachment and supports multiple modules for expanded wiring solutions. Certified by CUL and VDE for safety and compliance, this product is ideal for PCB applications requiring robust, easy-to-assemble terminal connections in electrical and automation projects. Supports 16A rated current and 300V rated voltage with wire hole diameters of 1.5mm.
MULTICOMP PRO MC000034 Terminal Block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 16A
- Wire Size: 26 AWG to 12 AWG
- Housing Material: Polyamide 66
- Terminal Material: Brass, Tin Plated
- Screw Size: M2.6, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- PCB Hole Diameter: 1.5mm
- Cage Clamp: Supported
- Certifications: CUL, VDE
- Dimensions: Varies by model, range from 10.2mm to 61mm in length, 0.4 inch to 2.4 inches
- Support for right-angle wire orientation
- Rated for 16A current and 300V voltage, suitable for electrical connections
- Series of multiple modules allows expansion
Buy the Buy Multicomp Terminal Block Part Number MC000034 Online
Purchase the Multicomp terminal block online for versatile PCB wiring solutions with excellent safety certifications. Featuring a 5.08mm pitch, it supports wire sizes from 26 AWG to 12 AWG, making it ideal for electrical and automation applications. Constructed with polyamide 66 housing and brass terminals with tin plating, it provides durability and reliable conductivity. Rated for 16A and 300V, it ensures safe operation across temperature ranges from -40°C to 105°C. Easy to install, supports right-angle wiring, and offers module expansion, making it the perfect choice for your project needs.
Get Multicomp MC000034 today—built for reliable electrical connections and long-lasting durability in your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000034?
You can click on the BUY or RFQ button to purchase MC000034 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000034?
You can download the MC000034 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000034?
MULTICOMP PRO
