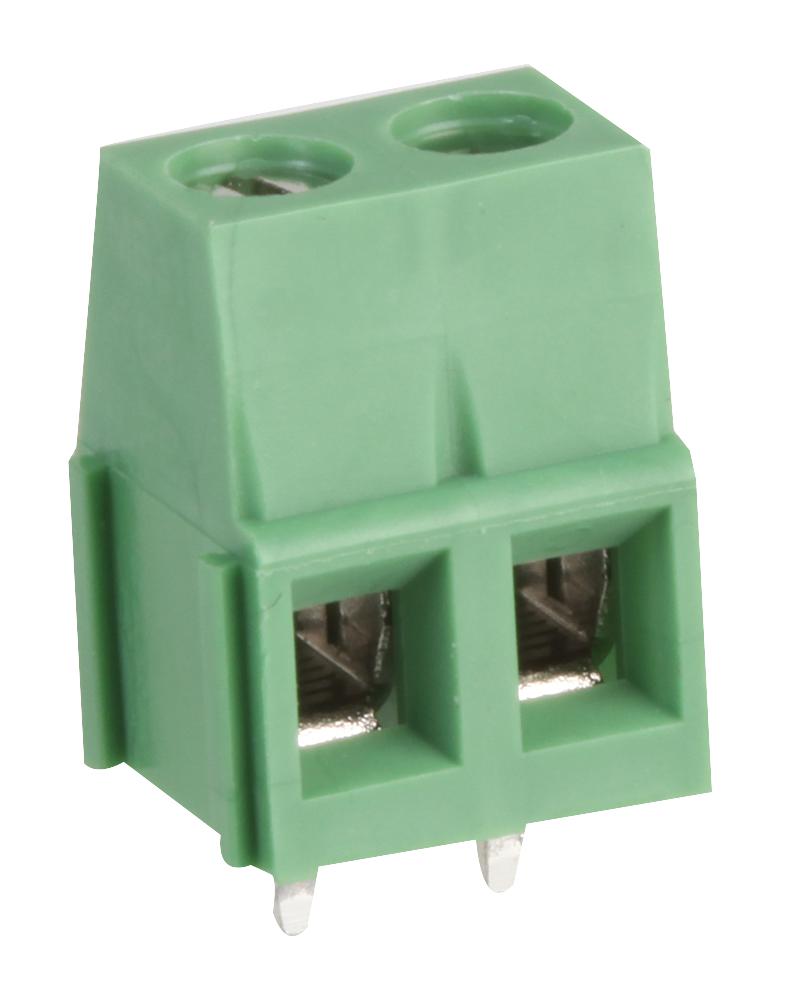

MULTICOMP PRO MC000048 Terminal Block
This 5.08mm terminal block series offers reliable electrical connectivity for industrial applications. Constructed with high-quality polyamide 66 insulative bodies and brass terminals, these blocks support a current rating of 16A and a voltage of 300V AC. They withstand insulation voltages up to 2,000V AC and operate within a temperature range of -40°C to +105°C. Suitable for wire ranges of 212 to 26 AWG with a wire strip length of 4 to 5mm, these terminal blocks feature nickel-plated steel screws and a pitch of 5.08mm for secure, durable connections. Ideal for automation and control systems.
MULTICOMP PRO MC000048 Terminal Block Specifications:
- Rating Current: 16A
- Voltage Rating: 300V AC
- Insulation withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MO at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4 to 5mm
- Wire Range: 212 to 26 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5.08mm
- Material: Insulating body Polyamide 66 - Green, Cage clamp Steel Ni plated, Terminal Brass Tin plated, Screw Steel Ni plated
Buy the Multicomp Pro 5.08mm – Reliable Terminal Blocks for Industrial Applications
Enhance your electrical assembly with our reliable 5.08mm terminal blocks. Designed for industrial use, they support up to 16A current and 300V AC voltage. Made with durable polyamide insulative bodies and brass terminals, these blocks feature nickel-plated steel screws for lasting performance. With a pitch of 5.08mm and support for wire ranges from 212 to 26 AWG, they operate across a temperature range of -40°C to +105°C. Suitable for automation, control panels, and wiring systems, ensuring secure and efficient connections.
Order your Multicomp Pro 5.08mm terminal block today and secure dependable electrical connections for your control panels and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000048?
You can click on the BUY or RFQ button to purchase MC000048 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000048?
You can download the MC000048 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000048?
MULTICOMP PRO
