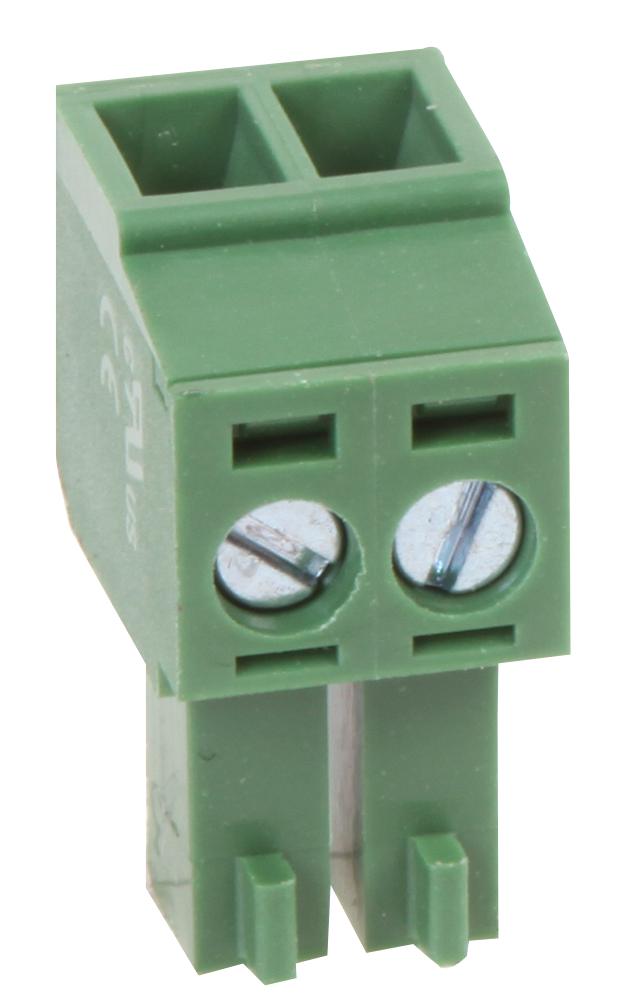

MULTICOMP PRO MC000056 Pluggable PCB Connector
This pluggable PCB connector features a 3.5mm pitch with 2 to 12 poles, made from durable PA 66 housing, with brass cage clamp and phosphor bronze contacts, ideal for reliable electrical connections in industrial environments. It supports a maximum operating temperature from -40°C to +105°C, with a current rating of 10 Amperes at 300V AC, and withstanding insulation voltage up to 2,000V AC. Suitable for wire sizes 16 to 26 AWG, it offers easy assembly with a M2.0 screw thread and a tightening torque of 3 lb-inch, ensuring secure and stable connections.
MULTICOMP PRO MC000056 Pluggable PCB Connector Specifications:
- Pitch: 3.5mm
- Poles: 2 to 12
- Current Rating: 10 Amperes
- Voltage: 300V AC
- Insulation withstand Voltage: 2,000V AC
- Insulation resistance: >2,000MO 500V DC
- Housing Material: PA 66
- Cage Clamp Material: Brass, Ni Plated
- Contact Material: Phosphor Bronze, Tin Plated
- Screw Thread: M2.0, Steel, Zinc Plated
- Wire Size: 16 to 26 AWG
- Tightening Torque, Max.: 3 lb-inch
- Operating Temperature: -40°C to +105°C
- Certifications: RoHS
- Min. Insulation withstand Voltage: 2,000V AC
Buy the Multicomp PCB Connector – Reliable 3.5mm Pitch for Industrial Applications
Secure reliable electrical connections with this pluggable PCB connector, featuring a 3.5mm pitch, 2-12 poles, and rated for 10A at 300V. Made from durable PA 66 housing, with brass cage clamp and phosphor bronze contacts, it supports wire sizes 16 to 26 AWG. Its high insulation withstand voltage of 2,000V AC ensures safety and performance across temperatures from -40°C to +105°C. Easy to install with M2.0 screw thread and maximum tightening torque of 3 lb-inch, ideal for industrial wiring and automation systems.
Order your multicomp Series MC000056 PCB connector today and give your industrial wiring projects the dependable, high-quality connection they need.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000056?
You can click on the BUY or RFQ button to purchase MC000056 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000056?
You can download the MC000056 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000056?
MULTICOMP PRO
