MULTICOMP PRO MC000058 Electrical Plug Connector

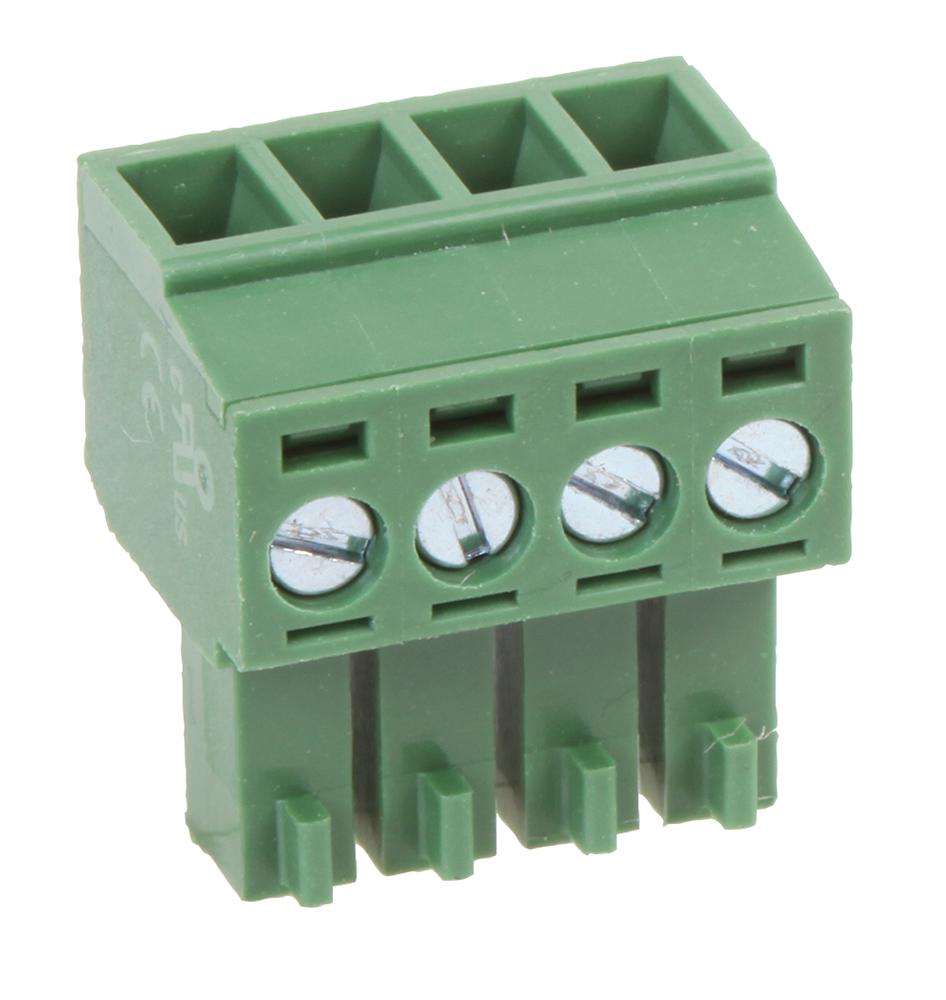

The 3.5 mm Straight Plug is a high-quality, pluggable electrical connector designed for reliable connections in electronic and industrial applications. Constructed with a polyamide 66 insulating body in green, it features tin-plated phosphor bronze contacts and brass cages for durability and corrosion resistance. Rated for 10 amperes and 300 V AC, it withstands insulation voltages up to 2,000 V AC, with an operating temperature range from -40°C to +105°C. The plug's dimensions vary with the number of poles, ensuring versatile deployment in various electronic systems.
MULTICOMP PRO MC000058 Electrical Plug Connector Specifications:
- Current rating: 10 amperes
- Operating voltage: 300 V AC
- Minimum insulation withstand voltage: 2,000 V AC
- Insulation resistance: >2,000 MQ at 500 V DC
- Operating temperature: -40°C to +105°C
- Wire range: 16 to 26 AWG
- Wire strip length: 6.5 mm
- Screw torque: 2 to 2.5 Ib-inch
- Material: Polyamide 66 (insulating body), Phosphor Bronze (contacts), Brass (cage), Steel (screw)
- Dimensions: varies with poles, e.g., 18.3 mm for 4-way, 42.8 mm for 12-way
- Pitch: 3.5 mm (0.138 inch)
Buy the Elementi 3.5 mm Straight Plug MC000058 – Reliable Electrical Connector for Industrial Applications
Purchase the Elementi 3.5 mm Straight Plug online today for high reliability and durability in industrial wiring and electronic systems. Designed with a polyamide insulation body and tin-plated phosphor bronze contacts, it provides a secure connection with a current capacity of 10 amperes and voltage rating of 300 V AC. Featuring a wire range from 16 to 26 AWG and a wire strip length of 6.5 mm, this plug ensures safety, efficiency, and ease of installation for various electronic and industrial applications. Order now for fast delivery and excellent performance.
Get Elementi 3.5 mm Straight Plug MC000058 today—built for precision and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000058?
You can click on the BUY or RFQ button to purchase MC000058 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000058?
You can download the MC000058 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000058?
MULTICOMP PRO
