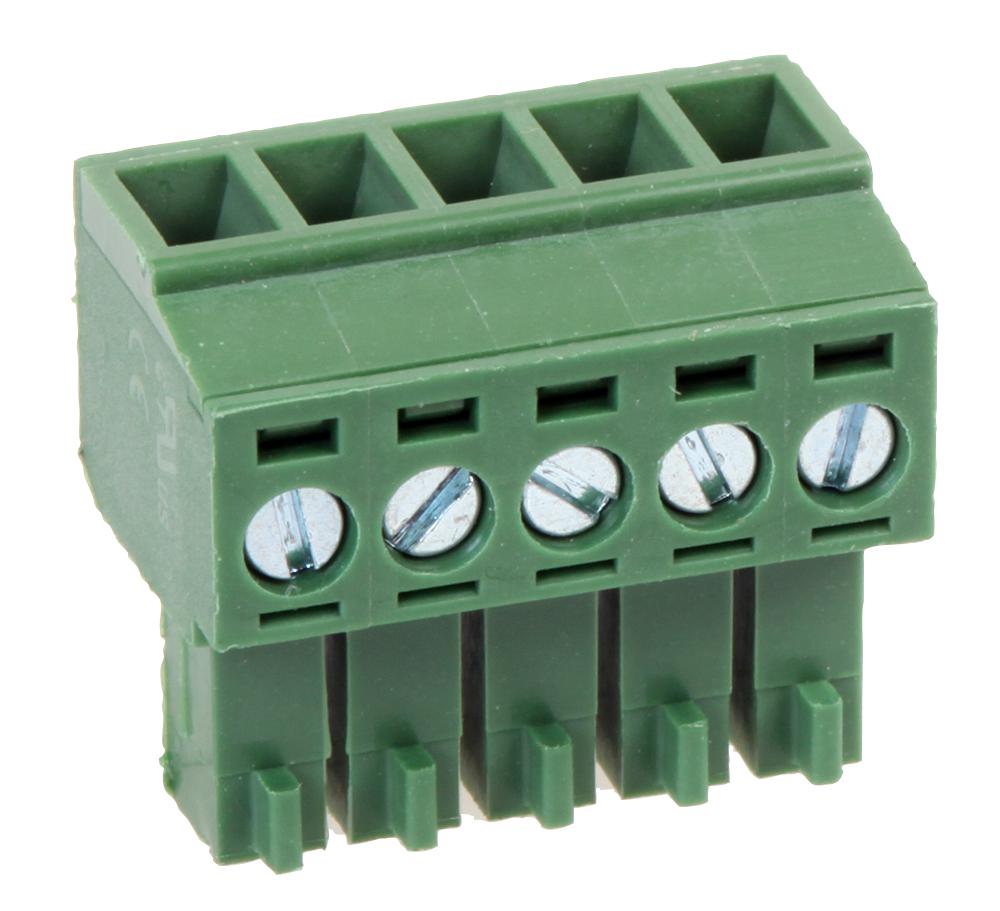

MULTICOMP PRO MC000059 Pluggable Terminal Block
The MC000059 is a 5-way, 3.5mm pluggable PCB terminal block with a green polyamide 66 insulating body, tin-plated phosphor bronze terminals, and a straight orientation. Designed for electronic applications, it accepts 16 AWG wire, offers an insulation resistance of over 2000 Megaohms, and operates within a temperature range of -40°C to +105°C, ensuring reliable and durable connections in various industrial and electronic systems.
MULTICOMP PRO MC000059 Pluggable Terminal Block Specifications:
- Insulating Body: Polyamide 66 - Green
- Contact Material: Phosphor Bronze, Tin plated
- Cage Clamp: Brass
- Screw Material: Steel
- Current Rating: 10 amperes
- Voltage Rating: 300 V ac
- Min Insulation Withstand Voltage: 2,000 V ac
- Insulation Resistance: > 2,000 Megaohms at 500 V de
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 6.5 mm
- Wire Range: 16 to 26 AWG
- Pitch: 3.5 mm (0.138 inch)
- Dimensions vary with pole number; e.g., 2 poles: 78 mm (0.307 inch), 3 poles: 113 mm (0.445 inch), up to 12 poles: 42.8 mm (1.685 inch)
Buy the Farnell MC000059 – Reliable Pluggable Terminal Block for Industrial Applications
Purchase the Farnell MC000059 pluggable terminal block online today—designed for durability and reliable connections in electronic and industrial applications. Its green polyamide body ensures insulation, while tin-plated phosphor bronze contacts provide corrosion resistance. With a 3.5mm pitch, accepts 16 AWG wire, and operates across -40°C to +105°C temperature range, it guarantees superior performance in demanding environments. Easy to install, it’s ideal for electronics, automation, and control systems requiring secure, plug-in connections and high insulation resistance.
Get Farnell MC000059 today—built for reliable, durable electronic connections and industrial system integration.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000059?
You can click on the BUY or RFQ button to purchase MC000059 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000059?
You can download the MC000059 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000059?
MULTICOMP PRO
