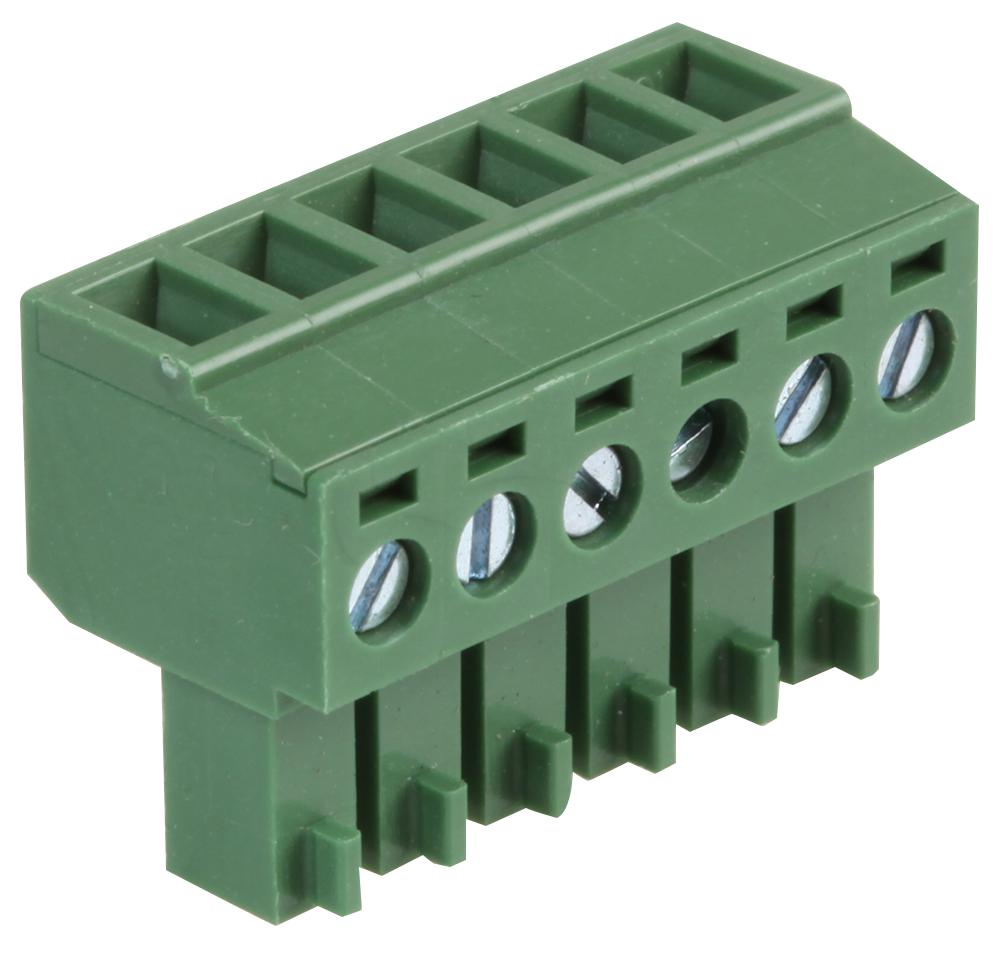

MULTICOMP-PRO MC000100 Pluggable PCB Terminal Block
The MC000100 is a 6-position, 3.81mm pitch pluggable PCB terminal block featuring a tin-plated phosphor bronze terminal, a green polyamide 66 insulating body, and a straight orientation. It supports wire gauges up to 16AWG and offers an insulation resistance of over 2000 megaohms. The operating temperature range is from -40°C to +105°C. This product is certified for reliable electrical connections, with a maximum current rating of 10A at 300V ac, making it ideal for industrial control systems, automation, and electronic projects with high durability demands. It ensures easy wire assembly with a wire strip length of 6.5mm and a screw torque of 2.5 lb-inch.
MULTICOMP-PRO MC000100 Pluggable PCB Terminal Block Specifications:
- Current rating: 10 amperes, 300 V ac
- Insulation withstand voltage: 2,000 V ac
- Insulation resistance: > 2,000 MΩ @ 500 V dc
- Operating temperature: -40°C to +105°C
- Wire strip length: 6.5 mm
- Wire range: 16 to 26 AWG
- Dimensions: Pitch 3.81 mm (0.15 inch), Poles: 2 to 12, Length varies with number of poles
- Material: Polyamide 66 - Green insulator, phosphor bronze with tin plating for contacts
- Screw torque: 2.5 lb-inch
- Connector type: Straight plug
Buy the Multicom ECN – Reliable PCB Terminal Blocks for Industrial Applications
Order the Multicom ECN series terminal block online today and ensure secure, durable, and efficient electrical connections for your automation and control systems. With a 6-position design, 3.81mm pitch, and support for wire gauges from 16 to 26 AWG, this product offers easy installation, high insulation resistance, and robust construction. Ideal for industrial, electronic, and control projects, it guarantees dependable performance with maximum operating temperature up to 105°C. Make your purchase now and experience quality assurance and excellent customer support for all your wiring needs.
Buy Multicom ECN terminal blocks now and experience unmatched reliability and performance in your industrial or electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000100?
You can click on the BUY or RFQ button to purchase MC000100 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000100?
You can download the MC000100 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000100?
MULTICOMP-PRO
