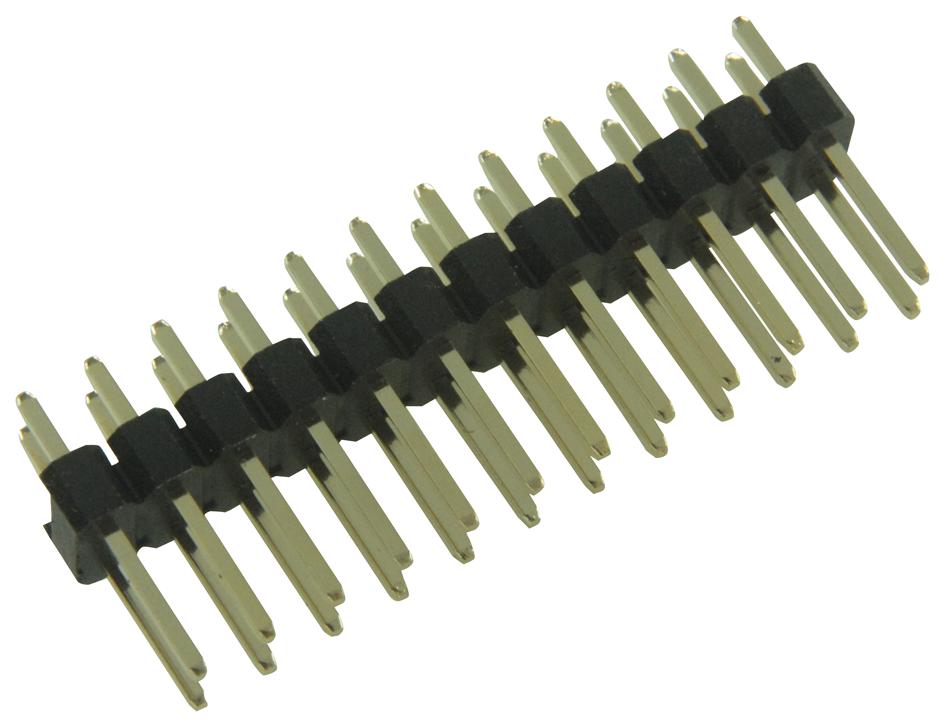

MULTICOMP PRO 2213S24G PCB Header
The 2213S-24G is a 24-pin, two-row PCB header featuring gold-plated copper alloy contacts and a black high-temperature PBT insulator. Designed for through-hole vertical mounting, it provides reliable electrical connections suitable for industrial applications. It supports a rated current of 3A AC/DC, with a maximum voltage of 250VAC/DC. The contact resistance is up to 20 milliohms, and the insulation resistance is at least 1000 megaohms. It can withstand a voltage of 600V AC for one minute and operates within a temperature range of -40°C to +105°C.
MULTICOMP PRO 2213S24G PCB Header Specifications:
- Series: 2213S
- Connector Type: Board to Board
- Pitch Spacing: 2.54 mm
- Number of Rows: 2
- Number of Contacts: 24
- Gender: Plug
- Contact Termination: Solder
- Contact Resistance: > 20mΩ
- Current Rating: 3A
- Insulation Resistance: 1,000MQ
- Operating Temperature: -40°C to +105°C
- Voltage Rating: 250V AC
- Withstand Voltage: 600V
- Materials: High Temperature Plastic (Black), Copper Alloy contacts, Gold Plated
- Dimensions: 24 mm length, 2.54 mm pitch, 2 rows
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold
Buy the Multicomp 2213S-24G – Reliable PCB Header for Industrial Applications
Purchase the 2213S-24G PCB header online today to ensure high-quality, durable connections for your industrial electronics projects. Featuring gold-plated contacts and a robust high-temperature insulator, this header guarantees reliable electrical performance. Its compact design with 24 pins, two rows, and solder terminations makes it easy to integrate into your PCB assembly. With a current rating of 3A and voltage resistance up to 600V, it operates efficiently within -40°C to +105°C. Secure your supply today for dependable industrial connections.
Buy Multicomp 2213S-24G now and experience unmatched reliability and performance in industrial PCB connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2213S24G?
You can click on the BUY or RFQ button to purchase 2213S24G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2213S24G?
You can download the 2213S24G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2213S24G?
MULTICOMP PRO
