MULTICOMP-PRO MC000101 Industrial Terminal Block

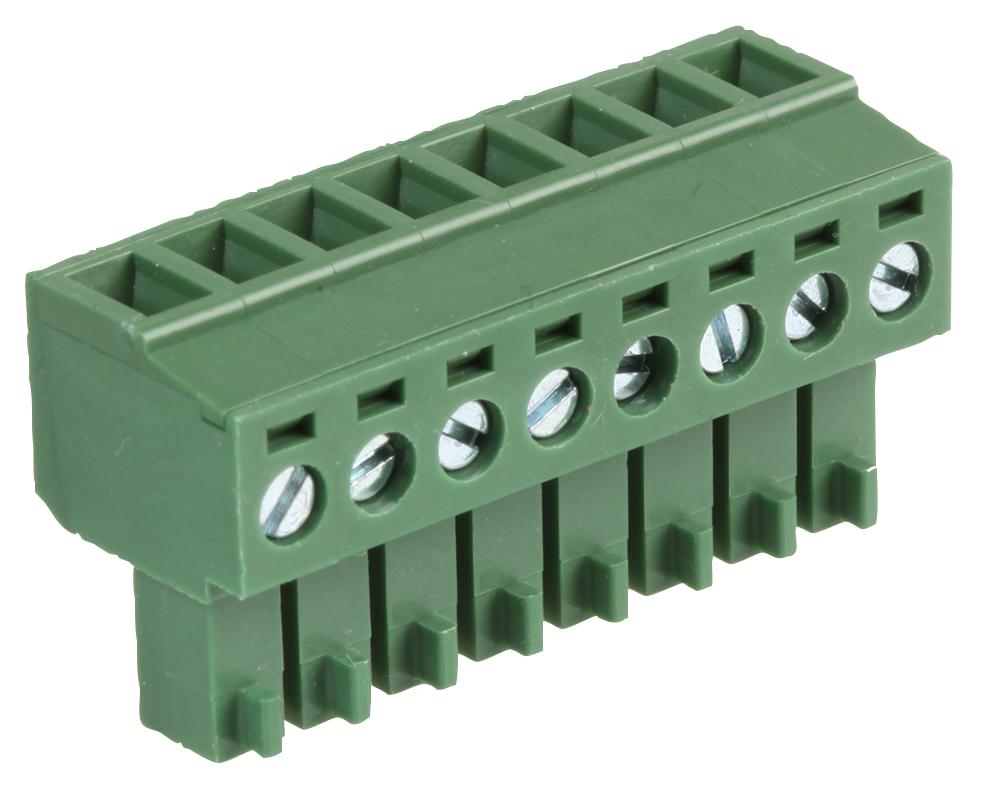

The MC000101 is an 8-way 10A straight pluggable terminal block with a green polyamide 66 insulating body. It features tin-plated phosphor bronze contacts and a nickel-plated steel screw for durable, reliable connections. Designed for screw wire connection, it offers a minimum insulation withstand voltage of 2000 VAC and an insulation resistance exceeding 2000 megaohms at 500V. Operating smoothly within -40°C to 105°C, this terminal block is ideal for industrial wiring applications, ensuring safety and high performance in various environments.
MULTICOMP-PRO MC000101 Industrial Terminal Block Specifications:
- Current rating: 10 amperes, 300 V ac
- Minimum insulation withstand voltage: 2,000 V ac
- Insulation resistance: > 2,000 MΩ at 500 V de
- Operating temperature: -40°C to +105°C
- Wire strip length: 6.5 mm
- Wire range: 16 to 26 AWG
- Screw torque: 2.5 lb-inch
- Material: Polyamide 66 - Green
- Contact Material: Phosphor Bronze, Tin plated
- Screw Material: Steel, Nickel plated
- Dimensions: Pitch 3.81 mm (0.15 inch), Poles: 8
- Part Number: MCO000101
Buy the Multicomp Series 8-Way Terminal Block: MC000101
Purchase the Multicomp MC000101 8-way 10A pluggable terminal block online today to ensure high-quality, safe, and reliable electrical connections. Designed with a green polyamide insulating body, tin-plated phosphor bronze contacts, and a sturdy steel screw, it supports a minimum insulation withstand voltage of 2000 VAC and offers an insulation resistance over 2000 megaohms at 500V. Operating effectively from -40°C to 105°C, this terminal block is perfect for industrial environments requiring durable and secure wiring solutions, backed by a 12-month limited warranty.
Buy Multicomp MC000101 now and experience unmatched reliability and performance in industrial wiring and electrical connections.
