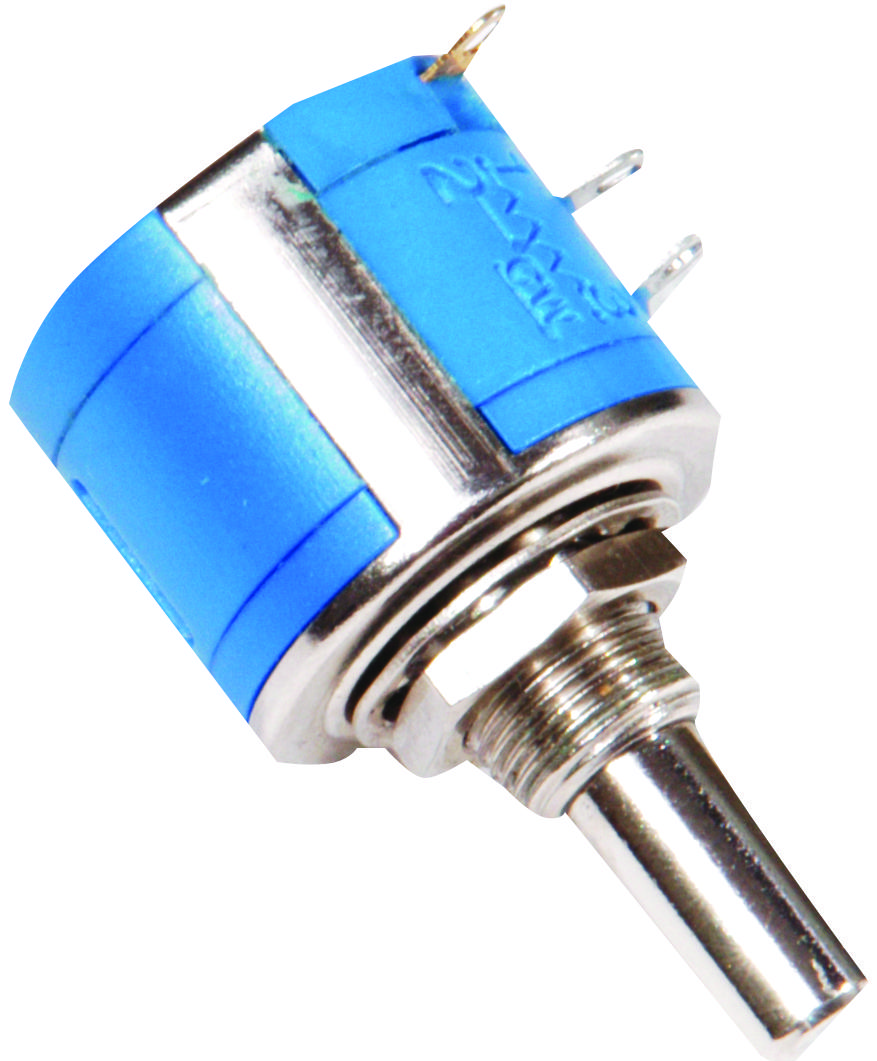

MULTICOMP PRO MCWWPT10502LF Precision Wirewound Potentiometer
The precision wirewound potentiometer offers reliable, high-accuracy adjustable resistance in industrial applications. It features a multiturn design with metal shaft and bushing, resistance values from 100Ω to 100kΩ, and a metal shaft with 6mm diameter. Capable of withstanding environmental stresses, it provides a power rating of 2W at 70°C and a temperature range from -55°C to +125°C. Its stable electrical characteristics include 360° effective electrical angle, minimal resistance shift of 5%, and insulation resistance of 1000MΩ, making it ideal for precision control and calibration in demanding industrial settings.
MULTICOMP PRO MCWWPT10502LF Precision Wirewound Potentiometer Specifications:
- Resistance Range: 100Ω to 100kΩ
- Number of Turns: 210
- Resistance Tolerance: ±5%
- Effective Electrical Angle: 360° with -10° min.
- Absolute Minimum Resistance: 0.2%
- Power Rating: 2 Watt at 70°C
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: ±100ppm/°C
- Insulation Resistance: 1000MΩ min. at 500V DC
- Dielectric Withstanding Voltage: 900V AC at 101.3kPa
- Mechanical Angle: 360°
- Torque: Max. 36mN-m
- Vibration Resistance: 98m/s²
- Shock Resistance: 490m/s²
- Rotational Life: 1,000,000 revolutions
- Load Life: 1,000 hrs at 2W @ 70°C
- Physical Dimensions: Shaft diameter 6mm, various sizes per model
Buy the Buy Multicomp Precision Wirewound Potentiometer Part Number MCWWPT-10502LF Online
Enhance your control systems with this high-quality multiturn wirewound potentiometer. Featuring a sturdy metal shaft, resistance from 100Ω to 100kΩ, and robust environmental tolerance, it ensures precise adjustment and reliable performance in demanding industrial environments. Suitable for calibration, adjustment, and control applications, it offers a maximum power of 2W at 70°C, operation from -55°C to +125°C, and a stable electrical profile with minimal resistance shift. Purchase online today to secure this essential component for your technical needs.
Order your Multicomp Series MCWWPT-10502LF precision wirewound potentiometer today and enhance your industrial control and calibration projects with dependable quality.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWWPT10502LF?
You can click on the BUY or RFQ button to purchase MCWWPT10502LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWWPT10502LF?
You can download the MCWWPT10502LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWWPT10502LF?
MULTICOMP PRO
