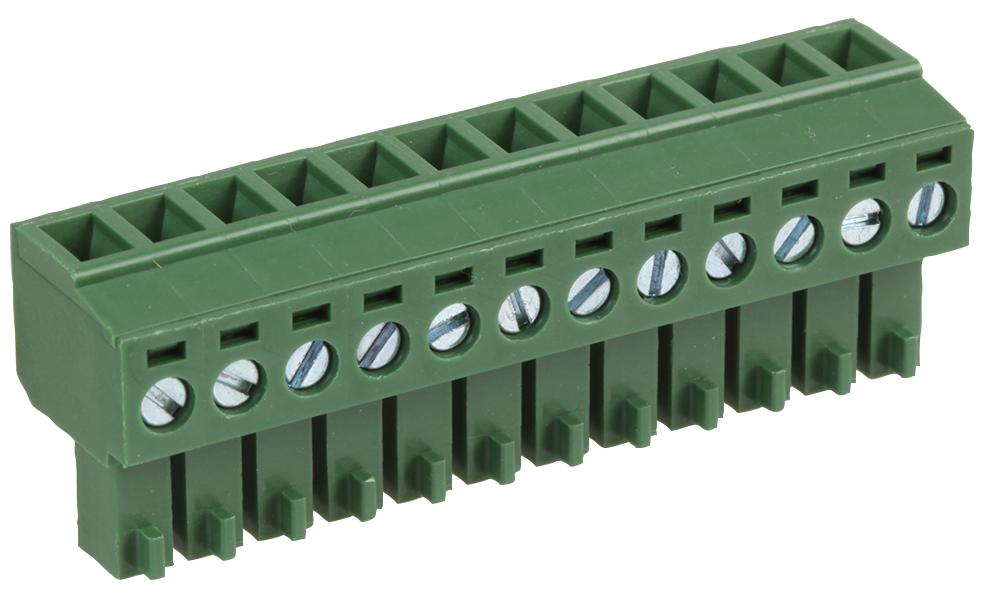

MULTICOMP PRO MC000103 pluggable terminal block
The MC000103 is a 12-way, 10A straight pluggable terminal block with a green polyamide 66 insulating body. Equipped with tin-plated phosphor bronze contacts and a nickel-plated steel screw, it uses screw wire connection for reliable attachment. It withstands voltages up to 2000VAC, offers an insulation resistance above 2000 MΩ at 500V, and operates within -40°C to 105°C. Suitable for industrial wiring, panels, and control systems, this terminal block ensures durability and safety with high-quality materials and precise engineering, making it ideal for various electrical applications.
MULTICOMP PRO MC000103 pluggable terminal block Specifications:
- Current rating: 10 amperes, 300 V ac
- Minimum insulation withstand voltage: 2,000 V ac
- Insulation resistance: > 2,000 MΩ at 500 V de
- Operating temperature: -40°C to +105°C
- Wire strip length: 6.5mm
- Wire range: 16 to 26 AWG
- Screw torque: 2.5 lb-inch
- Dimensions: Pitch 3.81 mm, various lengths for different pole configurations, e.g., 42.29 mm for 3-way
- Material: Insulating body Polyamide 66 - Green, Contact Phosphor Bronze Tin plated, Steel screw Nickel plated
- Part Number: Varies by pole count, e.g., Mco00096 for 2-way, Mco00097 for 3-way, up to Mco00102 for 10-way
Buy the Buy Multicom ECN Part Number MC000103 Online
Order the high-quality pluggable terminal block online and enjoy fast delivery. Designed with a green polyamide insulating body, tin-plated contacts, and steel screws, this 12-way, 10A terminal offers excellent insulation, withstand voltage up to 2000VAC, and operates reliably from -40°C to 105°C. Its screw connection ensures secure wiring for control panels, industrial automation, and electrical systems. Easy to install, durable, and UL-rated, purchase today to ensure safety and performance in your electrical projects.
Get Multicom ECN MC000103 today—designed for reliable electrical connections and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000103?
You can click on the BUY or RFQ button to purchase MC000103 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000103?
You can download the MC000103 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000103?
MULTICOMP PRO
