MULTICOMP PRO MC000124 Pluggable Terminal Block
Pluggable terminal blocks are essential connection components used in electrical and electronic systems for reliable wire-to-board connectivity. Featuring a 3.81mm pitch, these terminal blocks support rated current of 12A and voltage of 300V AC, making them suitable for industrial and automation applications. The insulating body is made of durable polyamide 66 in green, with brass solder pins tin-plated for corrosion resistance. Operating temperature ranges from -40°C to +105°C, ensuring stability across a broad range of environments. These modular connectors facilitate quick assembly, maintenance, and secure electrical connections in complex wiring setups.
MULTICOMP PRO MC000124 Pluggable Terminal Block Specifications:
- Rated Current: 12 Amperes
- Rated Voltage: 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000MQ at 500V DC
- Operating Temperature: -40°C to +105°C
- Pitch: 3.81mm (0.15 Inch)
- Insulating Body Material: Polyamide 66 - Green
- Solder Pin Material: Brass Tin Plated
- Pole Count Options: 3, 4, 5, 6, 8, 10, 12 Ways
- Physical Dimensions: Pole length varies from approximately 8.23mm to 46.33mm
- Mounting Type: Vertical Header, Pluggable, Modular
- Certification: RoHS Compliant

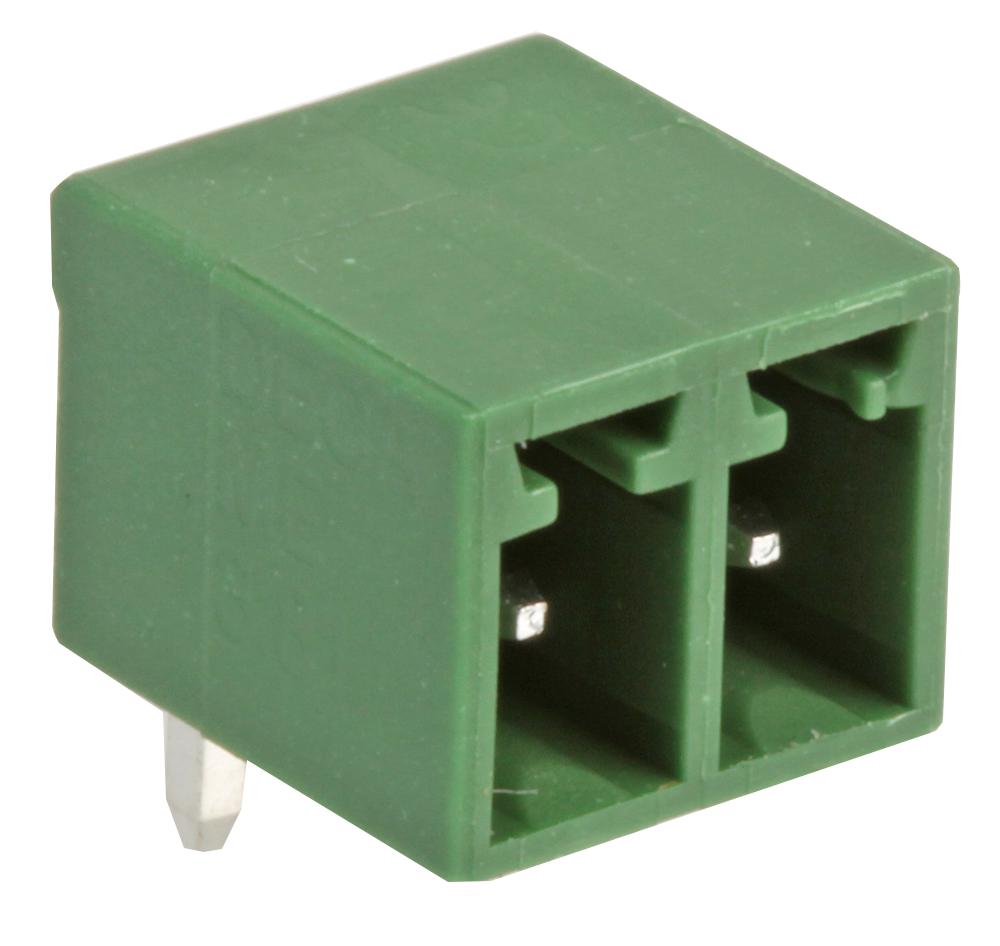

Buy the Multicomp Series Vertical 12A 3.81mm Pluggable Terminal Block: MC000124
Secure your electrical connections with our versatile 3.81mm pitch pluggable terminal blocks. Rated for 12A and 300V AC, they feature durable brass tin-plated pins, robust polyamide insulation, and a wide operating temperature range from -40°C to +105°C. Their modular design allows quick assembly and maintenance, ideal for wiring in control panels, automation systems, and industrial equipment. With multiple pole options, these easy-to-use connectors guarantee reliable, safe, and secure wire-to-board connections for demanding electrical projects.
Order your Multicomp Series 12A 3.81mm Pluggable Terminal Block today and ensure reliable, easy-to-assemble connections for industrial automation and wiring projects.
