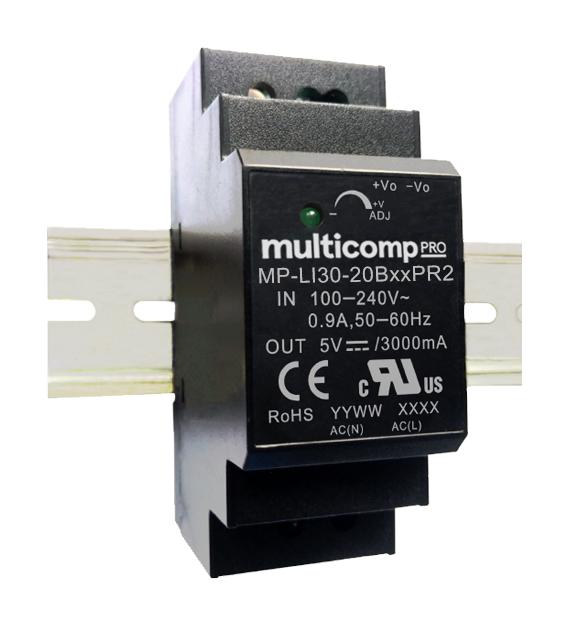

MULTICOMP-PRO MPLI3020B12PR2 Industrial Power Supply
This 30W DIN rail-mountable power supply offers efficient AC to DC conversion suitable for industrial applications, machinery, and control equipment operating in harsh environments. It features dual-use input accepting 85V AC to 264V AC or 120V DC to 370V DC, with high efficiency, low ripple & noise, and comprehensive protection including short circuit, over-current, and over-voltage safeguards. The device is RoHS compliant, certified safety standards UL/EN/IEC62368, and supports operating temperatures from -40°C to +70°C, making it reliable for industrial automation and control systems.
MULTICOMP-PRO MPLI3020B12PR2 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264V AC / 120-370V DC
- Input Frequency: 47-63Hz
- Output Power: 15W to 48W (multiple models)
- Output Voltage: 5V, 12V, 24V, 48V (adjustable)
- Efficiency: Up to 90%
- Isolation Test Voltage: 4000V AC
- Operating Temperature: -40°C to +70°C
- Storage Temperature: +85°C
- Humidity: Up to 95% RH
- Isolation Resistance: Input-output 4000V AC
- Protection: Short circuit, Over-current, Over-voltage, Surge withstand 300V AC for 5s
- Dimensions: 92.66mm x 35mm x 58mm
- Weight: 115g
- Certifications: UL, EN, IEC62368, CE, CB, CISPR32/EN55032
- EMC Immunity: IEC/EN61000-4 series for ESD, surge, EFT, immunity tests
Buy the Multicomp Series AC-DC Power Supply: MPLI3020B12PR2
Secure your industrial automation projects with the multicomp series MPLI3020B12PR2. This 30W DIN rail-mount power supply provides stable, efficient power conversion for demanding environments. It features wide input voltage compatibility, high efficiency up to 90%, and robust protections including short circuit, over-current, and over-voltage safeguards. Certificated with UL, EN, and IEC standards, it ensures safety and reliability. Easy to install with compact design, it is ideal for machinery, control systems, and harsh environment applications. Purchase online today for uninterrupted power performance.
Buy multicomp series MPLI3020B12PR2 now and experience reliable industrial power conversion with efficient design and comprehensive protections.
