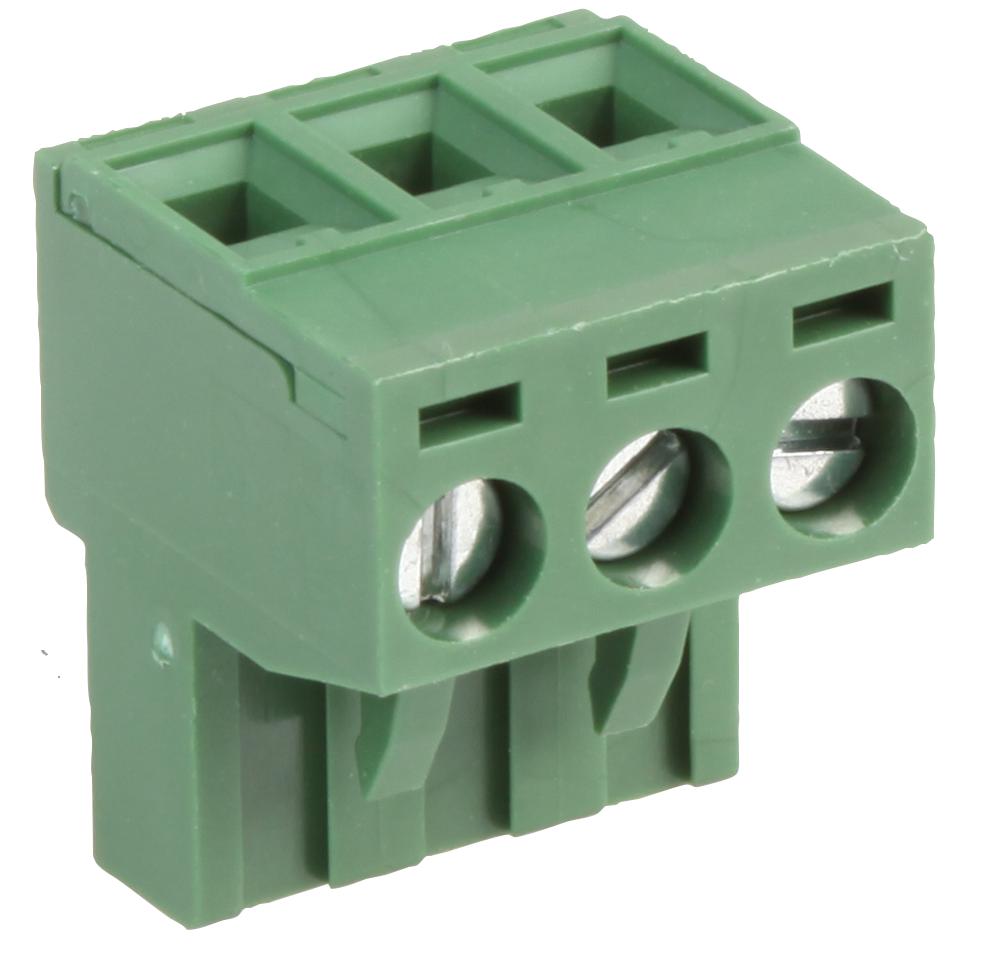

MULTICOMP PRO MC000137 Pluggable Terminal Block
This pluggable terminal block features a 5mm pitch and 16A current rating, designed for reliable electrical connections in industrial and automation applications. Made from polyamide 66 with a green insulating body, the terminal block supports wire ranges from 12 AWG to 24 AWG, with a wire strip length of 4mm to 5mm. It withstands insulation voltage up to 2000V AC, operates within -40°C to +105°C, and features phosphor bronze contacts with tin plating. Screw torque is 7 Ib-inch, ensuring secure terminations and robust performance in various environments.
MULTICOMP PRO MC000137 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000MQ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 12 AWG to 24 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5mm (0.197 Inch)
- Pole Material: Polyamide 66 - Green
- Contact Material: Phosphor Bronze, Tin plated
- Cage Clamp: Brass, Nickel plated
- Screw Material: Steel, Zinc+Cr+3
- Dimensions: Length varies with number of ways (2 to 12 ways), pole spacing 5mm
Buy the Multicomp 02-09-136 U–2013 Reliable Terminal Blocks for Industrial Applications
Enhance your electrical setups with our reliable pluggable terminal block offering a 5mm pitch and 16A capacity. Perfect for industrial automation, it features a robust polyamide green body, supporting wire ranges from 12 AWG to 24 AWG, ensuring secure connections. With a high insulation withstand voltage of 2000V AC and an operating temperature from -40°C to +105°C, this terminal block provides durability and safety. Its easy-to-assemble design makes it ideal for electrical panels, control systems, and modular wiring solutions. Purchase online now for dependable performance.
Order your Multicomp Series MC000137 16A 3-Way Plug for industrial wiring today and ensure dependable electrical connections in your projects.
