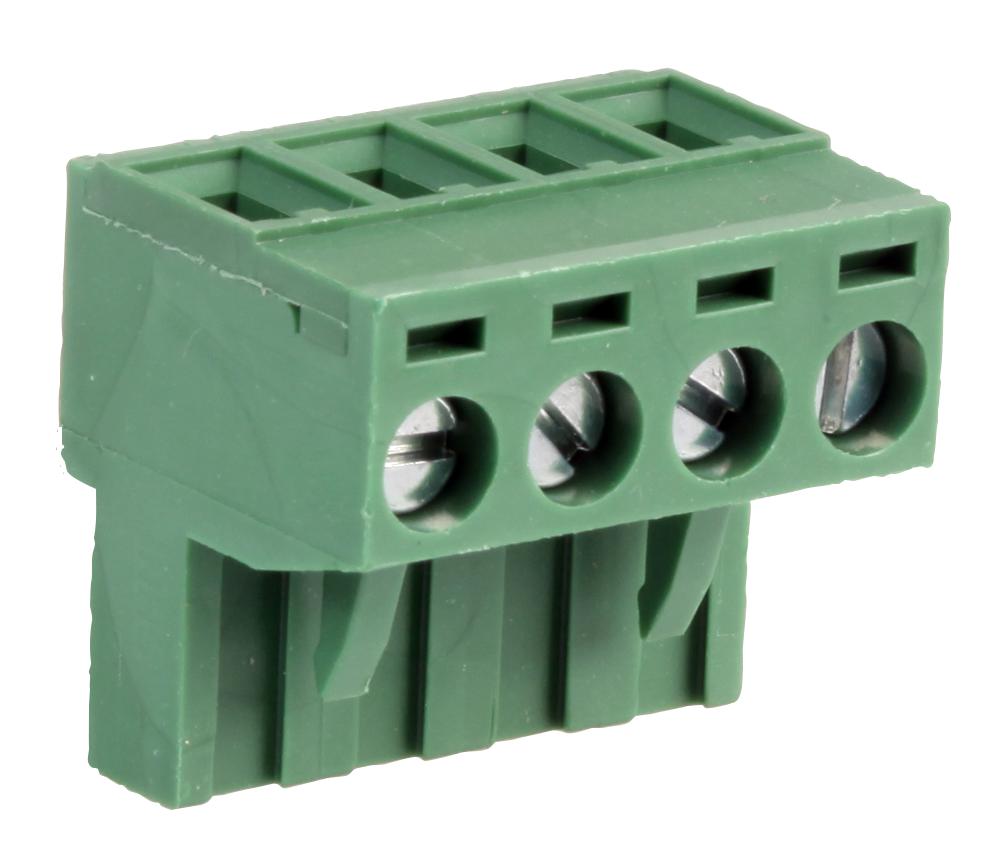

MULTICOMP PRO MC000138 Pluggable Terminal Block
This pluggable terminal block is designed for reliable electrical connections in industrial control and automation applications. It features a 5mm pitch, current rating of 16 Amperes at 300V AC, and a minimum insulation withstand voltage of 2,000V AC. Made with a polyamide 66 insulating body and phosphor bronze contacts, it offers easy wire stripping from 4mm to 5mm and secure cage clamp connections. The terminal block operates effectively within -40°C to +105°C and is available in multiple configurations from 3 to 12 ways, ensuring versatile wiring solutions for control systems and panels.
MULTICOMP PRO MC000138 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes at 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000MQ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 12 AWG to 24 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5mm (0.197 inch)
- Pole Sizes: 2, 3, 4, 5, 6, 8, 10, 12 ways
- Material: Polyamide 66 (Insulating Body), Phosphor Bronze (Contacts), Steel (Screws)
- Finish: Tin-plated contacts, Zinc + Cr screw coating
- Dimensions vary with pole count, typical length approximately 15mm to 50mm depending on configuration
Buy the Multicomp Series Pluggable Terminal Block: MC000138
Order the Multicomp Series Pluggable Terminal Block MC000138 online today for high-quality, secure electrical connections in industrial and automation wiring. Its robust design features a 5mm pitch, 16A current capacity, and a wide operating temperature range. Perfect for control panels and wiring harnesses, this terminal block offers quick wire insertion, reliable cage clamp connections, and excellent insulation resistance. Purchase now to ensure durable, professional-grade connections that meet your automation needs with ease and confidence.
Get Multicomp terminal block MC000138 today—designed for secure, reliable electrical connections in automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000138?
You can click on the BUY or RFQ button to purchase MC000138 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000138?
You can download the MC000138 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000138?
MULTICOMP PRO
