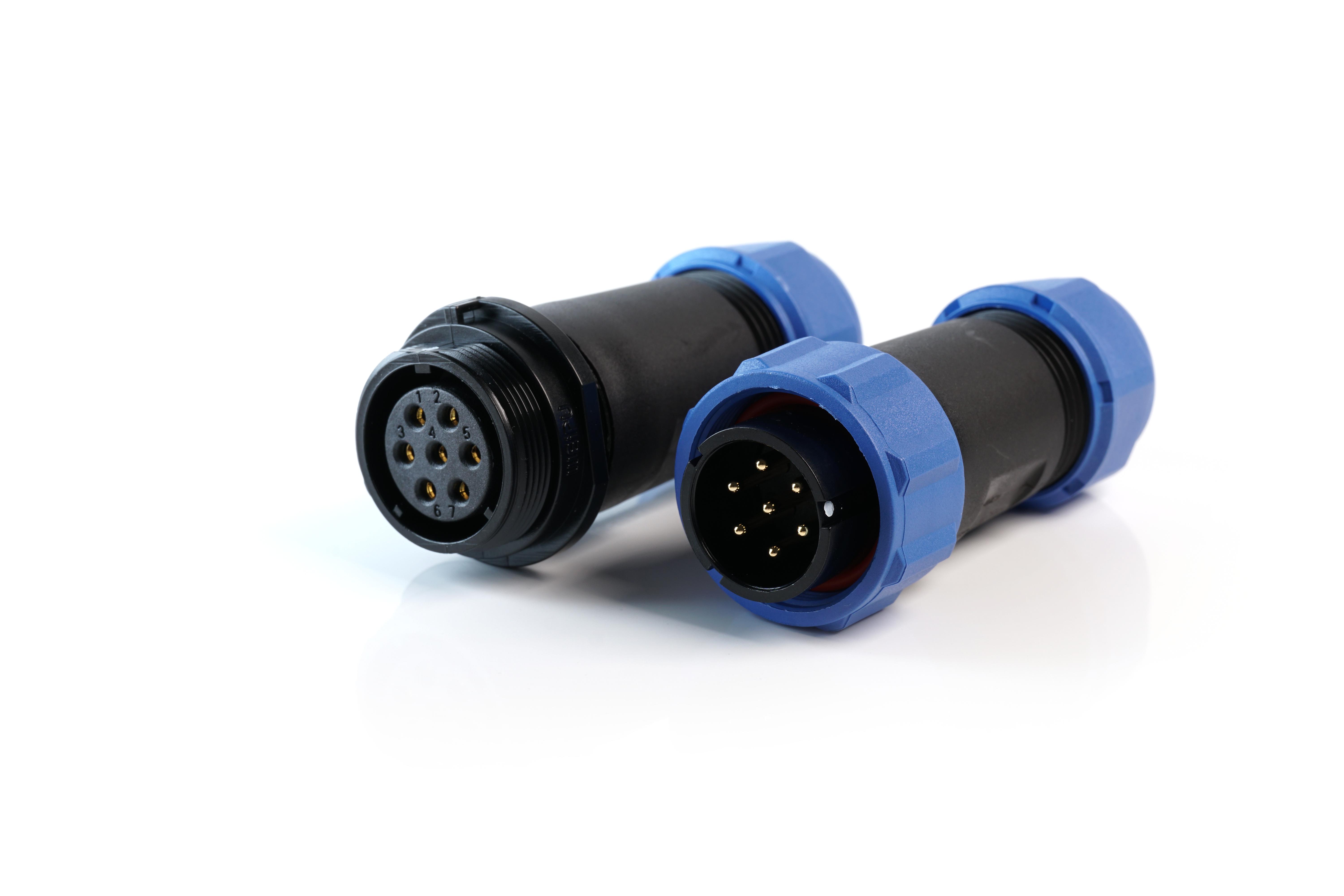

MULTICOMP-PRO MP002595 IP68 Circular Connector
The MP-T21 IP68 series connectors are rugged, weatherproof solutions designed for harsh environmental conditions, featuring threaded coupling and IP68 sealing. Available in panel, cable, and inline configurations, these connectors support cable-to-panel and cable-to-cable setups with options for solder or screw terminations. They accommodate various pole counts from 2 to 12 for versatile applications including automation, security, and industrial control. With a durable nylon66 shell, brass contacts with gold plating, and a maximum temperature of 260°C, they ensure reliable performance and easy installation in both indoor and outdoor environments.
MULTICOMP-PRO MP002595 IP68 Circular Connector Specifications:
- Shell Material: Nylon66
- Contact Material: Brass with gold plating
- Insert Material: PPS, Max. Temperature 260°C
- Coupling Type: Threaded
- Ingress Protection: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Termination: Solder and Screw options
- Contact Diameter: 3 mm (2-5 poles), 2 mm (7 poles), 1 mm (9-12 poles)
- Rated Current: 30 A (up to 5 poles), 15 A (7 poles), 5 A (9-12 poles)
- Rated Voltage: 500 V (up to 5 poles), 400 V (9-12 poles)
- Test Voltage: 1500 V (1 min)
- Cable Outer Diameter Range: 7mm to 12mm
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Mating Cycle: 500
- Insulation Resistance: 2000 MΩ
- RoHS Compliant
Buy the Buy Multicomp IP68 Connectors Part Number MP002595 Online
Purchase the durable and weatherproof IP68 circular connector MP002595 online to ensure secure and reliable connections in outdoor or harsh environment applications. This connector features a threaded coupling system for easy installation, with options for solder or screw termination, supporting various pole configurations. Its robust nylon66 shell and brass contacts with gold plating deliver excellent performance and longevity, suitable for automation, security, and industrial control systems. Order now to enhance your projects with high-quality IP68-rated connectivity solutions that withstand extreme conditions.
Order your Multicomp Series MP002595 IP68 connector today and ensure reliable, weatherproof connections for industrial and outdoor projects.
