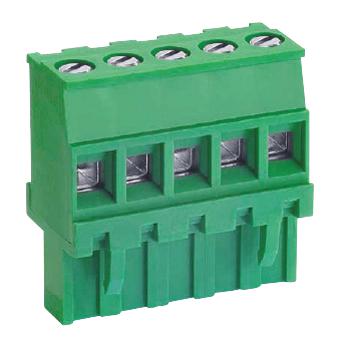

MULTICOMP-PRO MC000144 industrial electrical connector
This 5mm right angle pluggable connector is designed for reliable electrical connections in industrial automation and control systems. With a current rating of 16A and voltage capacity of 300V AC, it features a polyamide 66 green insulating body, phosphor bronze contacts with tin plating, and brass cage clamps. Suitable for wire ranges from 12 AWG to 24 AWG, it withstands insulation voltages up to 2000V AC, operating efficiently between -40°C and +105°C. The compact, right-angled design simplifies installation in confined spaces, ensuring durable and stable connections across various industrial applications.
MULTICOMP-PRO MC000144 industrial electrical connector Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 12 AWG to 24 AWG
- Wire Strip Length: 7mm
- Screw Torque: 7 Ib-inch
- Pitch: 5mm (0.197 inch)
- Material: Insulating Body Polyamide 66 - Green
- Contact Material: Phosphor Bronze Tin Plated
- Cage Clamp: Brass, Ni plated
- Screw: Steel
Buy the Multicomp 02-Component 5mm U+2013 Reliable Electrical Connectors for Industrial Applications
Purchase the high-quality 5mm right angle electrical connector from Multicomp today for dependable performance in industrial automation, control panels, and wiring systems. This robust connector offers up to 16A current capacity, 300V AC voltage rating, and features a durable polyamide body with tin-plated phosphor bronze contacts. Its compact design and reliable insulation resistance make it ideal for installations requiring space efficiency and long-lasting operational stability. Ensure your projects meet high safety and quality standards by ordering online now.
Get Multicomp 02-Component 5mm right angle connector today—built for durability and high-performance electrical connections.
