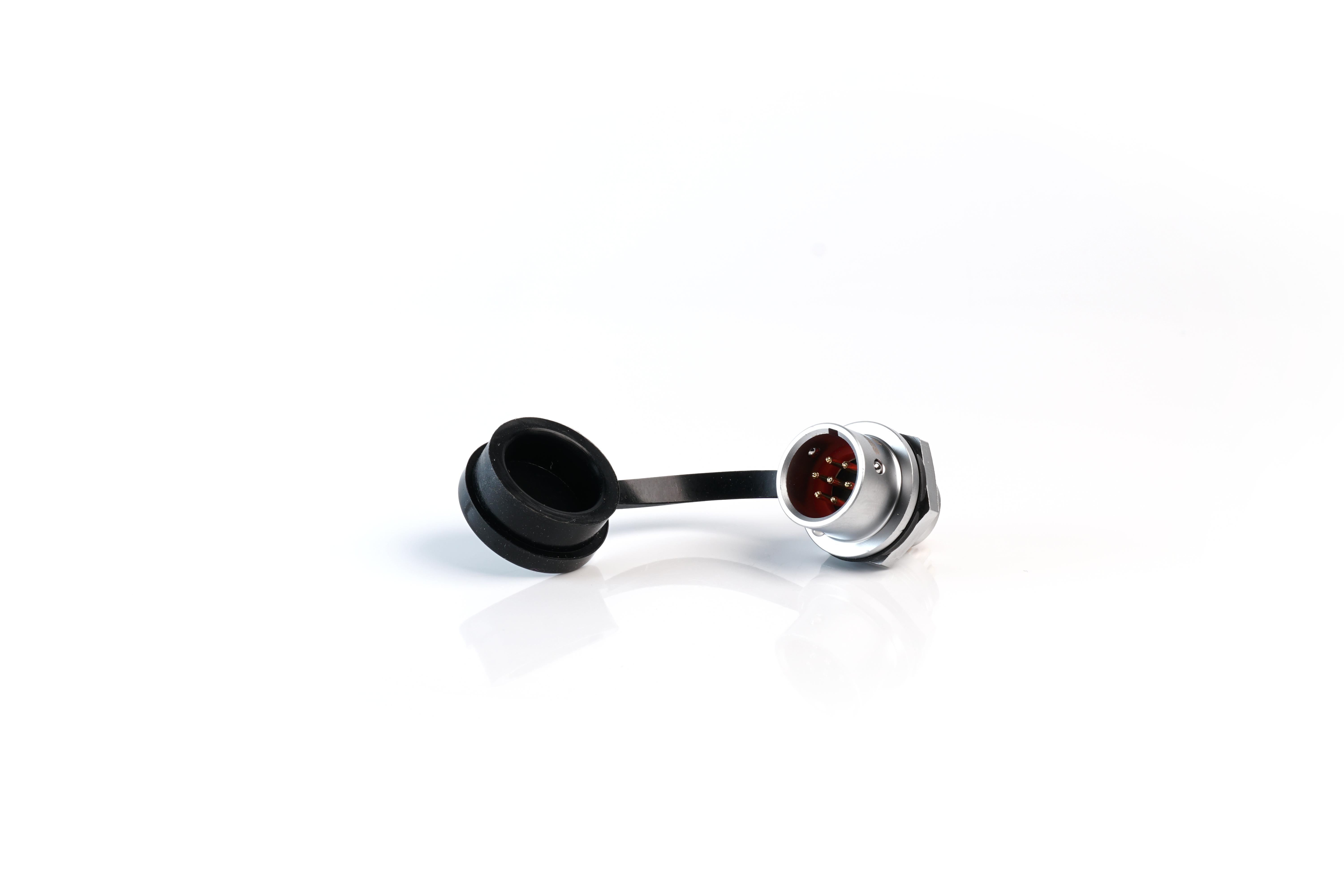

MULTICOMP PRO MP002750 M12 Push-Pull Connector
The MP M12 push-pull connectors are made of chrome-plated brass, providing durability in harsh environments while maintaining a sleek look. These connectors come in panel, cable, and inline mounting options, facilitating secure cable connections and quick coupling. With an IP67 rating, they resist water and dust, suitable for outdoor and indoor use. Designed for 12mm panel cut-outs, they feature solder termination for reliable electrical contact. Available with 2, 4, 5, and 7 poles, these connectors excel in automation, industrial control, medical devices, and security systems, offering robust performance and ease of installation.
MULTICOMP PRO MP002750 M12 Push-Pull Connector Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Ingress Protection: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13A (2 contacts), 5A (others)
- Rated Voltage: 250V (2 contacts), 200V, 180V, 125V (others)
- Test Voltage: 1500V or 1000V for 1 min
- Contact Resistance: 2.5 mΩ (2 contacts), 5 mΩ (others)
- Wire Size: 0.75/18 AWG
- Panel Cutout: 3.5 mm max
- Outer Diameter Range: 4mm to 6.5mm
- Coupling Mechanism: Push-pull
- Dimensions: Suitable for 12mm panel cut-out, approx. 19 mm diameter
- Mountings: Panel, Cable, Inline cable
Buy the Multicomp Series M12 Push-Pull Connectors: MP002750
Purchase your Multicomp Series M12 Push-Pull Connector MP002750 online now and ensure secure, durable connections for automation, industrial control, and outdoor applications. Designed with chrome-plated brass and IP67 sealing, it offers excellent resistance to environmental conditions. Available in multiple configurations with 2, 4, 5, or 7 poles, these connectors feature quick push-pull coupling, solder termination, and robust design for demanding environments. Perfect for medical, security, and industrial automation systems, buy online today for fast delivery and dependable performance.
Order your Multicomp Series M12 push-pull connector MP002750 today and equip your equipment with reliable, quick-connecting industrial connectors.
