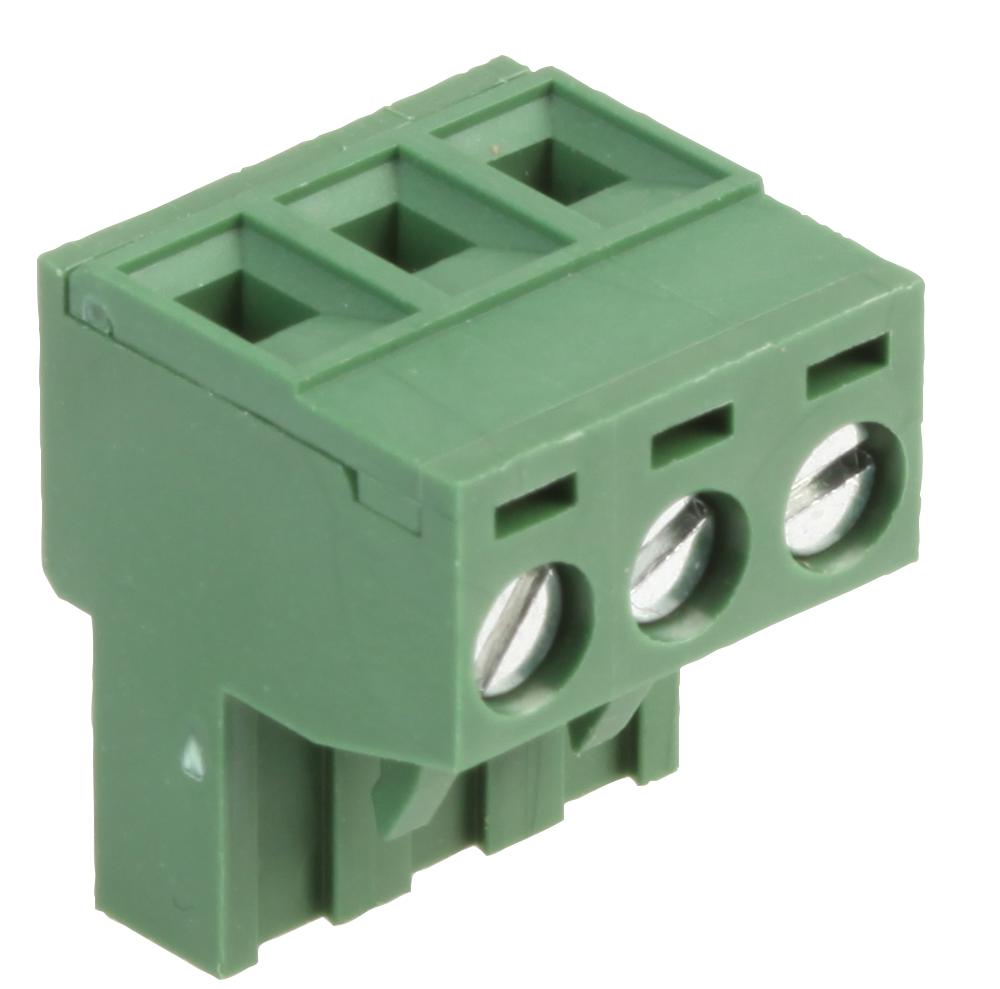

MULTICOMP PRO MC000177 3-Way Pluggable PCB Terminal Block
The MC000177 is a 3-way pluggable PCB terminal block with a 5.08mm pitch, featuring tin-plated phosphor bronze contacts and a green polyamide 66 insulating body. It has a straight block orientation and accepts 12 AWG wire gauge. It offers an insulation resistance of over 2000 megaohms and operates within a temperature range of -40°C to +105°C. This product is part of the Multicomp Pro range, rated highly by users, and comes with a 12-month limited warranty.
MULTICOMP PRO MC000177 3-Way Pluggable PCB Terminal Block Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000 MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 12 AWG to 24 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5.08mm (0.2 inch)
- Pole: 3
- Pole Spacing: 5.08mm
- Body Material: Polyamide 66
- Contact Material: Phosphor Bronze, Tin plated
- Screw Material: Steel, Zinc+Cr*3 plated
- Dimensions: Length varies with number of poles, pole length 10.16mm to 60.96mm
- Connector Type: Straight plug
Buy the Multicomp Series 3-Way Pluggable PCB Terminal Block: MC000177
Purchase the Multicomp Series 3-Way Pluggable PCB Terminal Block MC000177 online today and ensure secure, high-quality connections in your automation or control systems. Designed with a 5.08mm pitch, it features durable tin-plated phosphor bronze contacts and a robust polyamide 66 body for excellent insulation and mechanical strength. Rated for 16A at 300V AC, it operates efficiently within a temperature range of -40°C to +105°C. Easy to install, it is ideal for industrial, commercial, and electronics projects requiring reliable wire connection and modular design.
Get Multicomp MC000177 today—built for reliable industrial wiring and long-lasting performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000177?
You can click on the BUY or RFQ button to purchase MC000177 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000177?
You can download the MC000177 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000177?
MULTICOMP PRO
