MULTICOMP PRO MC002796 Fuse Management Module

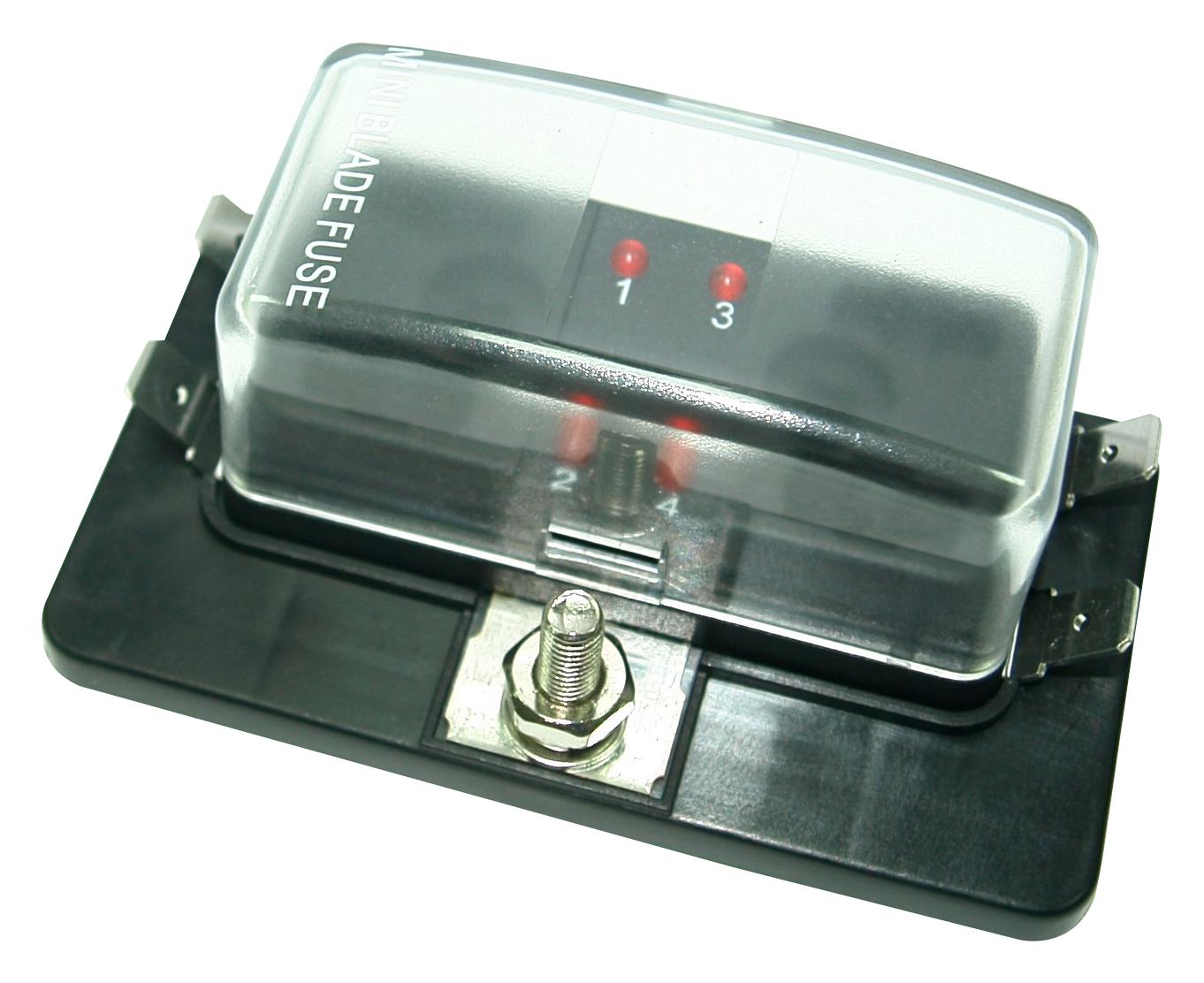

The Mini Blade Fuse Block with LED Warning Light is a 4-position multicomp panel mount device designed for automotive and industrial fuse management. It features quick connect fuse holder terminals compatible with mini blade fuses, rated for 32V DC, supporting up to four fuses simultaneously. The housing and base are made of UL94V-0 PBT, with a transparent PC cover for visibility. It includes input terminals rated for #10-32 threaded studs (100A max), output terminals rated for 830A per circuit, and operational temperature from -20°C to +85°C. This fuse block provides reliable power distribution and fuse protection with LED status indicators, ensuring safety and easy troubleshooting for electrical systems.
MULTICOMP PRO MC002796 Fuse Management Module Specifications:
- Fuse Holder Type: Mini Blade Fuse Holder
- Fuse Holder Terminal: Quick Connect
- Fuse Size: Mini Blade
- Number of Fuses: 4 Fuses
- Input Terminal Rating: #10-32 Threaded Studs (100A Max.)
- Output Terminal Rating: 830A Max. Per Circuit
- Voltage Rating: 32V DC
- Connection Pad: Input Wire Size: #4-6AWG, Output Wire Size: #12-16AWG
- Torque Rating: 20 in-lb (2.25Nm) Max.
- Mounting Torque Rating: 8 in-lb (0.9Nm) Max.
- Operating Temperature: -20°C to +85°C
- Housing & Base Material: PBT, UL94V-0, Black
- Cover Material: PC, UL94V-2, Transparent
- Push Button: POM, White
- Terminal Material: Copper, Tin Plated
- Dimensions: Millimetres
Buy the Premier Pro MC002796 – Reliable Fuse Management for Industrial Applications
Purchase the Premier Pro fuse management module online today and ensure your electrical systems are protected with high current capacity and easy fuse replacement. Featuring a four-position mini blade fuse holder with LED indicators, it provides reliable power distribution, quick connect terminals, and robust construction suitable for automotive and industrial applications. With a temperature range from -20°C to +85°C and UL94V-0 housing, this fuse block offers superior safety, visibility, and convenience for your wiring projects, ensuring optimal system performance and easy troubleshooting.
Order your Premier Pro MC002796 fuse block with LED warning light today and enhance your electrical safety with dependable fuse protection for industrial projects.
