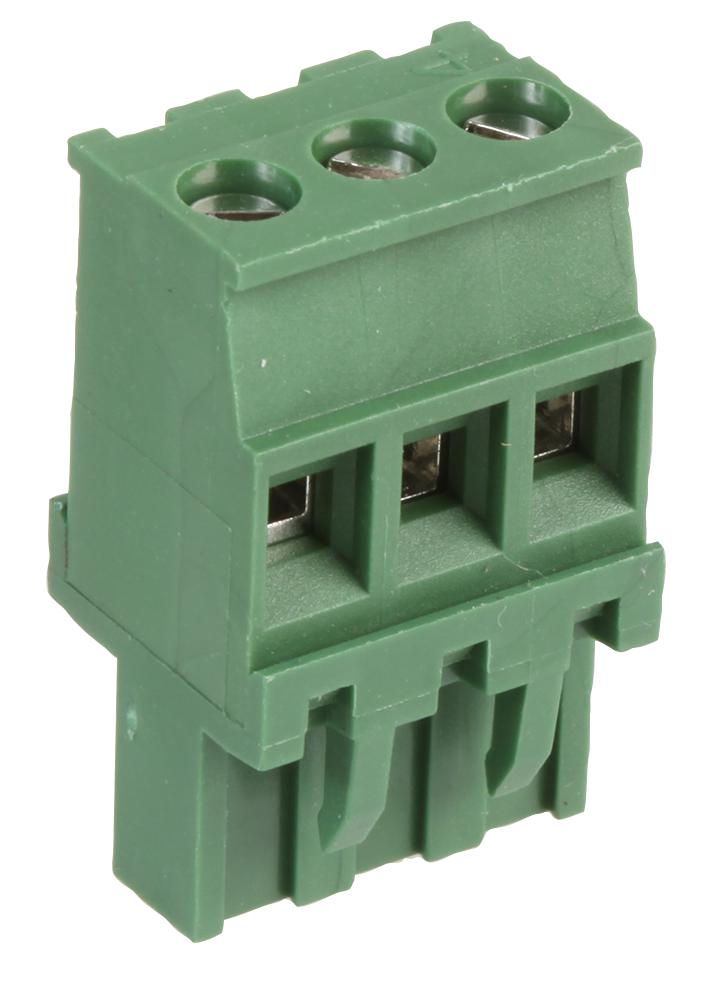

MULTICOMP PRO MC000185 Right Angle Terminal Block
The MC000185 is a 3-way, 16A, right-angle pluggable terminal block with a green polyamide 66 insulating body. It features tin-plated phosphor bronze contacts and a nickel-plated steel screw for reliable connections. The terminal block utilizes screw wire connection and offers a minimum insulation withstand voltage of 2000VAC. It has an insulation resistance greater than 2000 megaohms at 500V, a recommended screw torque of 4.5 lb-inch, and an operating temperature range from -40°C to 105°C. This product is suitable for industrial wiring, control panels, and automation systems, ensuring safe, durable, and easy-to-install electrical connections in diverse environments.
MULTICOMP PRO MC000185 Right Angle Terminal Block Specifications:
- Current rating: 16 amperes
- Voltage rating: 300 V ac
- Minimum insualtion withstand voltage: 2000 V ac
- Insulation resistance: > 2000 MΩ at 500 V de
- Operating temperature: -40°C to +105°C
- Wire strip length: 7 mm
- Wire range: 14 to 24 AWG
- Screw torque: 4.5 lb-inch
- Material: Insulating body made of Polyamide 66 in green
- Contact material: Phosphor Bronze, tin-plated
- Screw material: Steel, nickel-plated
- Dimensions: Pitch 5.08 mm (0.2 inch), various sizes available for different poles
- Design: Right angle pluggable terminal block for easy wiring connections
Buy the Multicom Series Right Angle Terminal Block: MC000185
Enhance your electrical installations with the high-quality Multicom Series right-angle terminal block MC000185. Designed with a green polyamide body, tin-plated contacts, and a steel screw, this 3-wire, 16A component offers excellent insulation resistance and withstands voltages up to 2000VAC. Operating seamlessly from -40°C to 105°C, it ensures solid, safe connections in industrial environments. Available for online purchase, this terminal block simplifies wiring and ensures long-term reliability, making it an ideal choice for professionals seeking durable and efficient electrical solutions.
Order your Multicom Series MC000185 right-angle terminal block today and ensure reliable, durable electrical connections for industrial control panels and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000185?
You can click on the BUY or RFQ button to purchase MC000185 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000185?
You can download the MC000185 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000185?
MULTICOMP PRO
