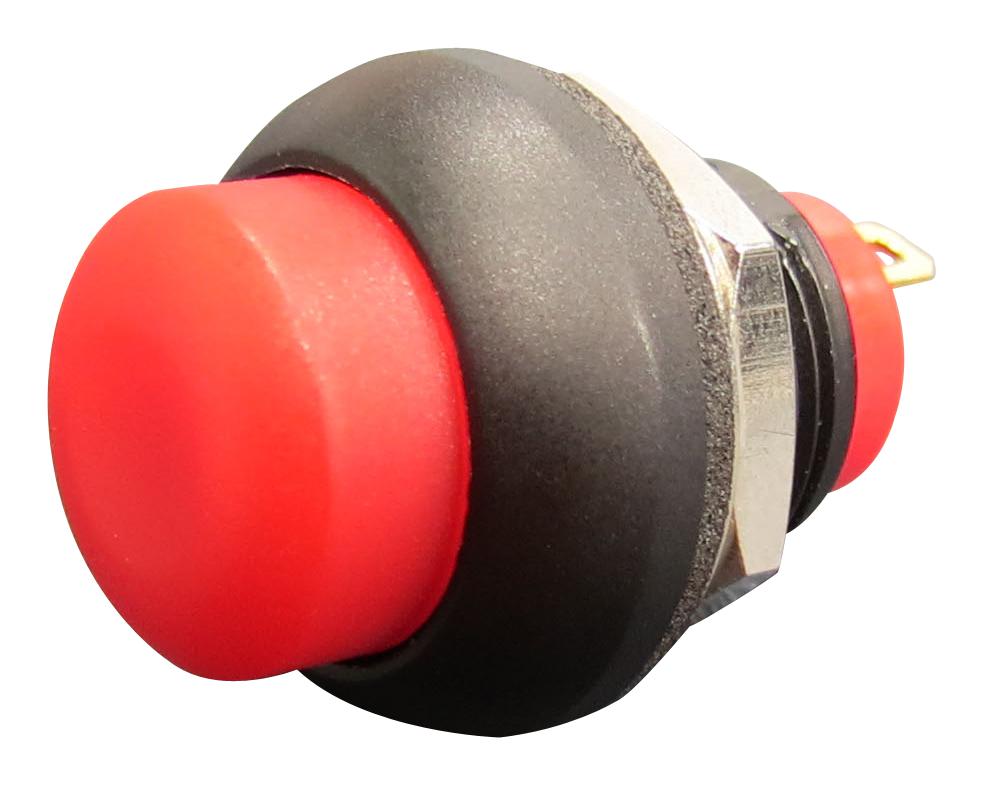

MULTICOMP PRO PAS6B2M1CESG25 Miniature Pushbutton Switch
The PA Series sub-miniature pushbutton switches are RoHS compliant, featuring durable materials like diallyl phthalate cases and polyamide caps. Designed for panel mounting, they support resistive loads up to 400mA at 32V AC and 100mA at 50V DC, with a mechanical life of 1,000,000 cycles. These switches operate within -30°C to 85°C, with a total travel of 1.5mm and operating forces between 2N and 5N. Suitable for various industrial applications, they include hardware options such as M12 nuts and locking washers, with soldering processes recommended at 350°C for 5 seconds.
MULTICOMP PRO PAS6B2M1CESG25 Miniature Pushbutton Switch Specifications:
- Max Current with Resistive Load: 400mA at 32V AC, 100mA at 50V DC
- Initial Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1GΩ min. @ 500V DC
- Dielectric Strength: 1,000 VAC rms; 1,500 VAC rms for metal parts
- Electrical Life at Full Load: 500,000 cycles
- Operating Temperature Range: -30°C to 85°C
- Panel Thickness: 0.8mm to 4mm depending on series
- Total Travel: 1.5mm
- Operating Force: 2N to 5N
- Mechanical Life: 1,000,000 cycles
- Torque: Max 0.5Nm to 1.5Nm depending on material
- Soldering Temperature: Max 350°C for 5 seconds
- Materials: Case made of UL94V-0 rated diallyl phthalate, caps of polyamide 6/6
- Switch Function: SPST, momentary or ON-OFF
- Hardware: Includes M12 nuts, locking washers, O-rings, and various bushings
Buy the Buy multicomp RoHS Sub-Miniature Pushbutton Switch Part Number PAS6B2M1CESG25 Online
Purchase the multicomp Series PAS6B2M1CESG25 miniature pushbutton switch online today and enjoy fast delivery and secure checkout. Ideal for industrial, control panels, and automation systems, this switch offers high durability, long mechanical life, and versatile mounting options. Designed for resistive loads up to 400mA at 32V AC, it features superior contact resistance, insulation strength, and operating temperature range. Enhance your equipment with this RoHS-compliant switch for reliable, safe operation in demanding environments.
Order your multicomp Series PAS6B2M1CESG25 durable pushbutton switch today and ensure reliable switching performance for your industrial projects.
